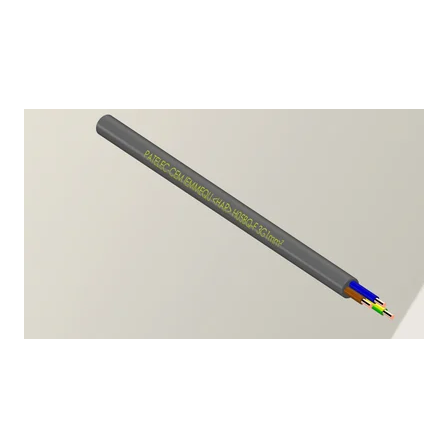

H05Z1Z1-F GHELIOS power cord
Power cords chosen by professionals for over 40 years.
H05Z1Z1-F GHELIOS is a halogen-free flexible cable characterized by low smoke and low corrosive gas emissions during a fire. It is suitable for environments where safety is a priority and is ideal for facilities and residences where many people gather, as well as for office use. Designed for light-duty applications in general households and offices, it can be used to supply power to various household electrical appliances such as vacuum cleaners, washing machines, spin dryers, and refrigerators. It is also suitable for use in humid locations, providing stable performance across a wide range of installation environments. The insulation material is made from halogen-free materials, which suppresses smoke generation and minimizes the release of corrosive gases in the event of a fire. This contributes to ensuring human safety and reducing equipment damage. Additionally, it is suitable for short-term outdoor use, making it a cable that allows for flexible operation both indoors and outdoors.
basic information
It supports configurations of 2-core, 3-core (with earth), 4-core, and 5-core, with a wide range of conductor cross-sectional areas from 0.5mm² to 2.5mm². It is designed for ordinary duty applications suitable for household electrical appliances such as vacuum cleaners, washing machines, and refrigerators, as well as general office equipment. The cable outer diameter is relatively compact, ranging from approximately 5.7mm at a minimum to about 13.9mm at a maximum, making it easy to handle even in spaces with limited wiring room, and it excels in workability. The insulation and sheath maintain an appropriate average thickness, providing an excellent balance of flexibility and mechanical protection. The maximum wire diameter is between 0.21mm and 0.26mm, and its supple structure allows for easy bending and improved maneuverability. The electrical resistance ranges from 7.98 to 26Ω/km, ensuring stable electrical characteristics. Additionally, the estimated weight ranges from 53 to 276kg/km, allowing for selection based on application, making it easy to handle in terms of installation and transportation.
Price range
Delivery Time
Model number/Brand name
Patelec
Applications/Examples of results
Power tools, submersible pumps, high-pressure washers, coffee makers, air conditioners, etc.
