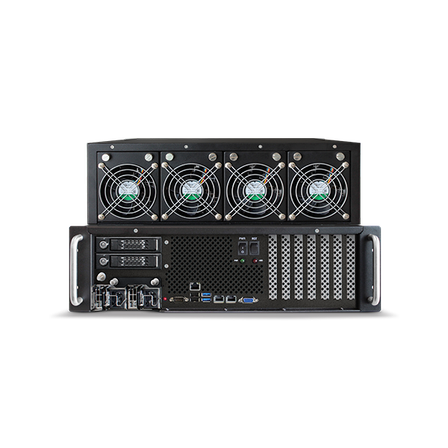

3U Rugged Dual XEON Server GAP-351P-S9
3U environmental-resistant dual XEON server compliant with MIL-STD-810 and MIL-STD-461 (front IO, front power) *6th generation XEON
The GAP-351P-S9 is designed for 19-inch rack mounting and features a 3U chassis with a depth of 510mm. Its front I/O and front power configuration provide flexible storage options, allowing for two internal M.2 NVMe slots, as well as the capability to support up to four removable U.2 NVMe SSDs or up to six removable 2.5-inch SATA SSDs. Additionally, this robust server can accommodate up to six PCIe cards. To enhance protection against shock and vibration, it can be supplied with a dedicated retainer kit for additional boards, ensuring optimal safety during transport. GAP's rugged edge server is designed to meet the MIL-STD-810F standards for temperature resistance and shock resistance, as well as the MIL-STD-167-1A standard for vibration resistance, guaranteeing reliable operation even under the harsh conditions frequently encountered in edge environments. Furthermore, an optional configuration compliant with MIL-STD-461 standards for EMI/EMC is available. Military-grade connectors are used for both power input and I/O connectors.
basic information
3U - 19-inch rack mount - 510mm Front I/O - Front power supply version Dual socket platform Up to 4TB DDR5 / RAM Up to 6 hot-swappable SSDs 6 PCIe expansion slots ■CPU Dual Intel Xeon 6700/6500 series processors (with P-cores) and Intel Xeon 6700 series processors (with E-cores) (LGA 4710 socket E2), supporting a maximum CPU TDP of 270W.
Price range
Delivery Time
Model number/Brand name
GOMA Ruggerd Solutions Inc.
Applications/Examples of results
Defense vessels, vehicles, networks
