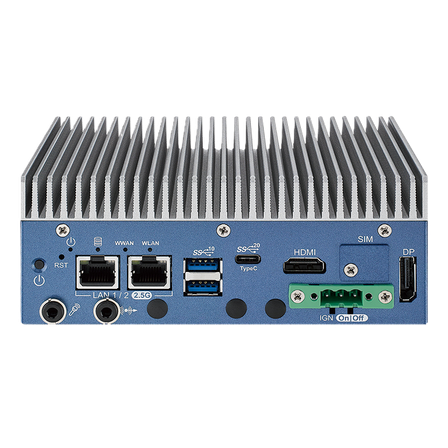

Vecow Corporation Ultra-Compact Fanless PC SPC-9000 Series
Intel Core Ultra processor equipped, ultra-compact fanless PC SPC-9000 - Vecow Corporation
The ultra-compact fanless system "SPC-9000," equipped with Intel Core Ultra processors, features two 2.5G LAN ports, two USB 3.2 Gen2 ports, and one USB 3.2 Gen 2x2 Type-C port, supporting multiple displays. It also supports optional SUBMIT B expansions for 10GigE LAN, 10G SPF+, or 4G networks. Additionally, by supporting Intel vPro, TSN, TCC, and TPM 2.0 standards, it enables compatibility with edge AI applications such as factory management, data collection and monitoring, AMR, and smart retail.
basic information
■Product Specifications ・CPU: Intel Core Ultra 7 165U Processor (12 Cores) or Intel Core Ultra 7 135U Processor (12 Cores) ・Chipset: Intel SoC ・Memory: DDR5 5600MHz SO-DIMM, up to 48GB ・Supported OS: Windows 11, Windows 10, Linux ・Display: HDMI 2.1, DisplayPort 1.4, DisplayPort 1.4 via USB Type-C ・I/O: 2x RS-232/422/485, 2x USB3.2 ・Storage: SATA III 2.5" HDD/SSD bracket, M.2 ・Audio: 1x Mic-in, 1x Line-out ・Ethernet: 2x 2.5GigE LAN, TSN support ・Power: DC 9V to 55V ・Dimensions, Weight: 150.4mm x 106.2mm x 59.9mm, 1kg ・Operating Temperature: -40°C to 60°C
Price range
Delivery Time
Model number/Brand name
SPC-9000 Vecow
Applications/Examples of results
Machine vision, factory management, etc.
Line up（3）
| Model number | overview |
|---|---|
| SPC-9000-165U | Intel Core Ultra 7 165U, 2 2.5G LAN, 2 COM, 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C, Heat Spreader |
| SPC-9100-165U | Intel Core Ultra 7 165U, 2 2.5G LAN, 2 COM, 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C, Heat Sink |
| SPC-9200-165U | Intel Core Ultra 7 165U, 2 2.5G LAN, 2 COM, 2 USB 3.2 Gen 2, 1 USB 3.2 Gen 2x2 Type-C, Fan Sink |
