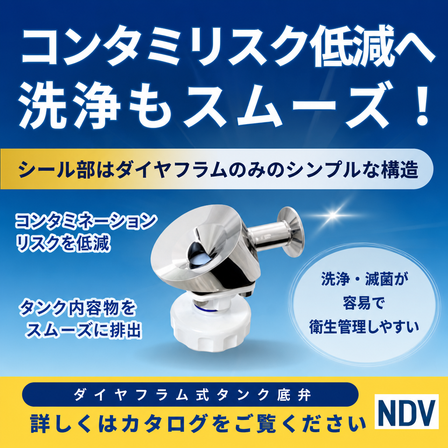

Easy and reliable cleaning and sterilization! Dead space countermeasure - Tank bottom valve T-shape.
Tanks from approximately 10L to 10,000L are acceptable! The opening and closing are done solely by the diaphragm, allowing for smooth discharge of the tank contents with almost no residue left.
【Features】 ● The structure is directly welded to the bottom of the tank, resulting in excellent stirring efficiency. ● There are no contact parts such as gland packing, stem, seat, or gasket; the opening and closing are done solely by the diaphragm, allowing for smooth discharge of the tank contents with minimal residue. Contamination caused by valve components is extremely low, and cleaning and sterilization can be easily and reliably performed. ● The applicable nominal diameters range from DN15 to 100 (4S), making it suitable for use with small containers of about 10 liters to medium tanks of about 10,000 liters. 【Specifications (Excerpt)】 ● Main body material: SUS316L ● Applicable nominal diameter (DN): 15 to 100 ● Operation method: Manual operation and pneumatic operation methods are both applicable. *For more details, please refer to the PDF materials or feel free to contact us. (The English and Chinese versions of the catalog can be downloaded from the catalog page of the special website below.)
basic information
*For more details, please refer to the PDF document or feel free to contact us. (The English and Chinese versions of the catalog can be downloaded from the catalog page of the special website below.)
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us. (The English and Chinese versions of the catalog can be downloaded from the catalog page of the special website below.)
