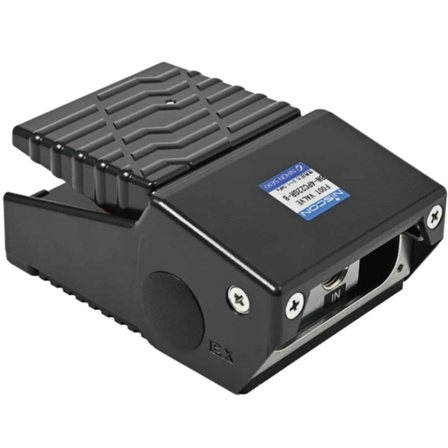

Foot-operated ball valve "BN-4PC Series"
Suitable for discharging drains from compressors and similar equipment! Usable pressure ranges from 0 to 1.4 MPa.
The "BN-4PC Series" is a foot-operated ball valve that can be installed on the floor, allowing for quick drainage operations without getting your hands dirty or bending down. It features a PTFE seat, providing excellent sealing performance. Additionally, it is a compact type with a low height. Please feel free to contact us when you need assistance. 【Features】 ■ Easy to operate ■ Usable up to medium pressure (1.4MPa) ■ Excellent sealing performance ■ Outstanding durability ■ Compact *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications (Excerpt)】 ■Number of Ports: 2 ports ■Nominal Diameter: 8A ■Fluid Used: Air, Drain, Water ■Operating Pressure: 0 to 1.4MPa ■Pressure Resistance: 2.1MPa ■Foot Force: 200N *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
