Compatible with High-Viscosity Fluids – TSP CUPLA with Ball Valve
Valve Operation Possible Even When Connected! The ball valve design ensures minimal pressure loss and enables high flow rates

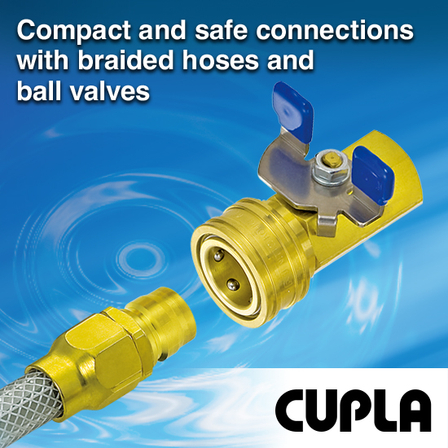

The "TSP CUPLA" is a quick connect fluid coupling for gases and liquids. It features a compact design that integrates a socket and ball valve, known as "with ball valve," and a unique two-piece structure for "braided hose connection types" that eliminates the need for hose band tightening. Using them as a set is even more effective. [Features of the Ball Valve Type] - Approximately 30% reduction in total length compared to when a standard ball valve is attached to the TSP coupler. - The integrated structure eliminates the need to attach a ball valve to the coupler. - Coupler design accommodates flexible piping applications. - Equipped with a sleeve lock mechanism to prevent accidental disconnection when opening or closing the valve. For more details, please refer to the PDF document or feel free to contact us.
basic information
[Features of Braided Hose Connection] - Simply insert the hose to the base and tighten the nut to the end - No need for inner parts required for typical braided hose fittings, eliminating assembly errors - No need for hose bands, reducing the risk of injury - Less deterioration of the hose at the nut section, eliminating the need for retightening - Unique nut design increases the pull-out load of the hose * For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
[Applications] For gases / liquids For more details, please refer to the PDF catalog or feel free to contact us.
