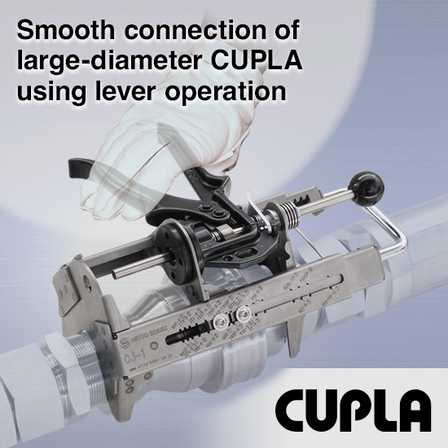

Smooth Connection of Large-Diameter Couplers – CUPLA CONNECTING JIG
Built-in safety device! Effortless and smooth connection of large-diameter couplings with simple lever operation.
"CJ-1" is a coupler connection jig that offers comfortable operability and versatility. By adjusting the overall length of the main body, it can accommodate all couplers of the target products. During connection operations, it can be used at any angle where the handle does not interfere with the coupler. If excessive load is applied during connection, the safety device activates to prevent damage to the main body. Features: ■ Connect large-diameter couplers lightly and smoothly with lever operation. ■ Accommodates all couplers of the target products by adjusting the overall length of the main body. ■ Can be used at any angle during connection operations where the handle does not interfere with the coupler. ■ The safety device activates to prevent damage to the main body if excessive load is applied during connection. For more details, please refer to the PDF document or feel free to contact us.
basic information
Specifications: - Body material: Special steel (SUS430), Aluminum alloy - Connecting under residue pressure: Not possible - Working temperature: Normal temperature - Storage temperature range: -20℃ to 60℃ - Mass: 1.85 kg For more details, please refer to the PDF catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
[Applications] - For Connection of Large-Diameter Couplings For more details, please refer to the PDF catalog or feel free to contact us.
