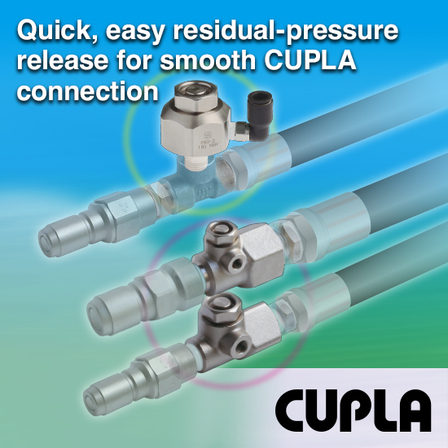

Remove the residual pressure from the hydraulic piping and connect the fittings smoothly! "Purge Adapter"
The residual pressure prevents the connection of the fittings... The purge adapter solves this problem with the push of a button! *Video demonstration available.
The "PAD Series" is a purge adapter that quickly and easily removes residual pressure from piping. We offer the "PAD-2 Type," which increases the speed of residual pressure removal, and the "PAD-FM Type," which is slim and designed for inline piping. Additionally, we also provide a coupler with a built-in residual pressure removal function that allows for smooth connections even when there is residual pressure during connection work, as well as the residual pressure release jig "ZN Series." 【Features】 ■ Quickly and easily removes residual pressure from piping ■ Enables smooth connection of the "coupler" ■ Simple one-push operation ■ If the button operation is stiff, work can also be done with a screwdriver (PAD-2 Type) ■ Suitable for mounting screw sizes of 3/8 or larger (PAD-FM Type) *For more details, please refer to the PDF materials or feel free to contact us.
basic information
【Lineup】 ■PAD-2 ■PAD-3FM ■PAD-4FM ■PAD-6FM ■PAD-8FM *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Application】 ■ Hydraulic piping circuit *For more details, please refer to the PDF document or feel free to contact us.
