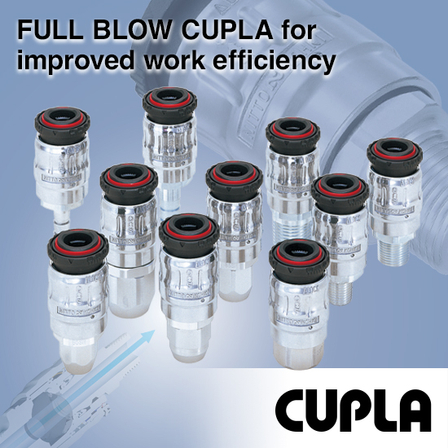

Up to 40% Increase in Flow Rate - "FULL BLOW CUPLA"
Experience low pressure loss and high flow with our advanced technology! During disconnection, residual pressure is released to prevent noise and recoil. *Video available
The FBH series is a quick connect fluid coupling for air lines. It features a built-in on-off valve that allows for valve operation while connected, and the sleeve stopper function enables locking in both open and closed valve states. Additionally, when the valve is closed, it purges (exhausts) the residual pressure on the plug side. Its unique valve mechanism reduces pressure loss and achieves a high flow rate. Features: ■ Smooth connection and disconnection ■ Built-in on-off valve ■ Sleeve stopper function ■ Residual pressure purge function ■ High flow rate and low pressure loss ■ Lightweight For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications (Partial)】 - Main Material: Aluminium alloy - Mounting Size ・For screws and hose mounting: R1/4～R1/2, Rc1/4～Rc1/2, 1/4～1/2 hose ・For urethane hose mounting: ø6.5×ø10, ø8×ø12, ø8.5×ø12.5, ø11×ø16 hose - Maximum Operating Pressure: 1.5 MPa {15 kgf/cm²} - Pressure Resistance: 2.0 MPa {20 kgf/cm²} - Vacuum Application Suitability: Not suitable for both standalone and connected use ※ For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
[Applications] - For pneumatic piping For more details, please refer to the PDF catalog or feel free to contact us.
