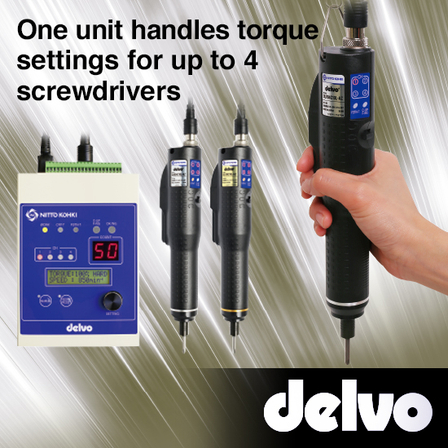

"delvo" Brushless Type C Series (Current control type) DLV04C/DLV10C
Consolidate up to four screwdrivers into one! Equipped with a screw-fastening counter and compatible with automatic machines!
Brushless Delvo C Series DLV04C / DLV10C This current-controlled electric driver can handle torque settings for up to four units with a single device. It offers two tightening modes: SOFT Tightening for workpieces with high screw-in load HARD Tightening for workpieces with low screw-in load By attaching the optional flange coupling (DLW9015) or suction attachment (DLP6610), the driver can be mounted on automatic screw tightening machines. [Features] Torque control via current control Low-voltage brushless motor ESD protection (anti-static performance) Suitable for both handheld and automated use Equipped with screw tightening counter function Includes external I/O signal support For more details, please refer to the PDF catalog or feel free to contact us.
basic information
[Electric Driver Specifications (Excerpt)] Model: DLV04C10L-AY K / DLV10C10L-AY K Applicable Bit: NK35 (OD6.35mm [1/4"] Hex Shank) Operating Voltage: 24 V DC Weight: Approx. 0.37 kg Rated Operation: ON time 0.5 sec / OFF time 3.5 sec For more details, please refer to the PDF catalog or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
