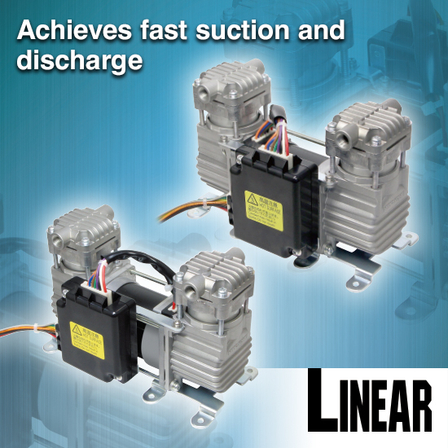

Maintenance-Free Vacuum Pump & Compressor – Model DP0410T
Compact and Durable – Cup seal mechanism enables high vacuum, high airflow, and oil-free operation.
"DP0410T" is a twin-head flow type vacuum pump and compressor. It is equipped with a brushless motor, allowing for controlled operation. It can be easily incorporated into equipment. Additionally, we offer the "DP0410T-Y1" specifically for vacuum pumps and the "DP0410T-Y2" specifically for compressors. Features: ■ Controlled operation possible (equipped with a dedicated board) ■ Equipped with a brushless motor ■ Easy equipment integration ■ Control functions ・Variable flow rate and pressure ・Prevention of overcurrent and overload ・Protection against reverse connection For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications (Excerpt)】 - Discharge Air Volume: 34 L/min - Rated Voltage: 24 V DC - Rated Time: Continuous - Mean Time to Failure (MTTF): 5000 hours - Coil Insulation Class: Equivalent to Class E - Mass (Weight): 1.6 kg - Lead Wire Length: 285 ± 20 mm * For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
