Punching machine "Atora Ace LO-3550A/LO-3000A"
Adjustable hole drilling position within a width of 10mm front and back, left and right! Drilling is also possible for diameters less than Φ11.5!

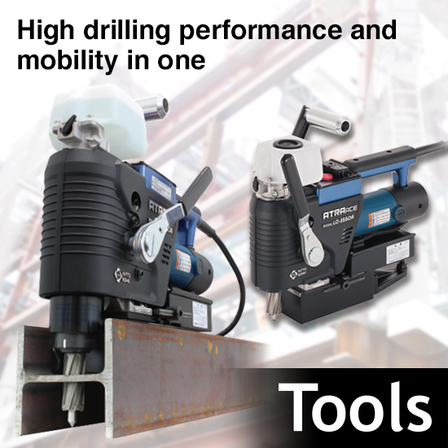

The "Atlaace LO-3550A/LO-3000A" is a low-profile magnetic drilling machine designed for H-beams with a 100mm web and H-beam flanges, suitable for side work. With magnetic adhesion, the main body can be fixed in place while allowing for easy adjustment of the drilling position within a maximum width of 10mm in all directions. The feed handle features a ratchet mechanism, enhancing work efficiency and speed. Due to the high rotation speed of the cutting tool, there is less cutting resistance, resulting in smooth handle operation. 【Features】 ■ Load detection function and restart function ■ Freely adjustable drilling position ■ Feed handle equipped with a ratchet mechanism ■ Low cutting resistance for smooth handle operation ■ User-friendly switch panel ■ Left-right switching of the feed handle is possible *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications (Excerpt)】 ■ Power Supply: AC100V 50/60Hz ■ Magnet Power Consumption: 35W ■ Maximum Magnetic Force: 5500N (561kgf) ■ Magnet Dimensions: 65 (Width) × 145 (Length) mm ■ Position Adjustment Range ・ Left/Right Movement: 10mm ・ Forward/Backward Movement: 10mm ■ Cab Tire Code: 1.25mm² 3-core 5m *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
