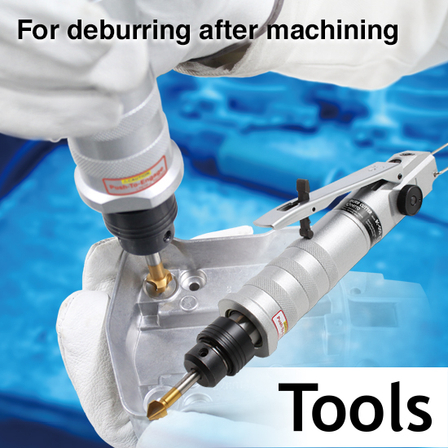

For Deburring Machined Holes - Burr Cutter BC-005
Push-to-Start Design Ensures Safe Operation: tool rotates only upon contact with the workpiece.
The “Burr Cutter BC-005” is a pneumatic deburring tool ideal for removing burrs from holes after machining. No need to move to a drill press—work can be performed as long as an air source is available. Its straight design makes it easy to align with the holes, and the push-start mechanism ensures the blade only rotates when in contact with the workpiece, providing a safe operation. [Features] Compact and lightweight Straight design for easy alignment to holes Safety design: blade rotates only when in contact with the workpiece Operates with just an air source For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 - Operating Air Pressure: 0.6 MPa (6 kgf/cm²) - Air Consumption (No Load): 0.22 m³/min - Maximum Rotational Speed (No Load): 420 min⁻¹ - Processing Hole Diameter: φ3～φ34 mm - Compatible Chamfer Cutter Shank Diameter: φ6, φ8, φ10 mm - Mass (Weight): 0.75 kg - Standard Accessories ・Attachment 6 ・Attachment 8 ・Attachment 10 (Installed on the main unit) ・Hook ・Hex key 2.5 mm ※ For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
