BELTON CL Type: Pneumatic Belt Sander with Adjustable Head Angle
Easily adjustable body angle to suit working position or workpiece shape. Quick belt replacement without tools!

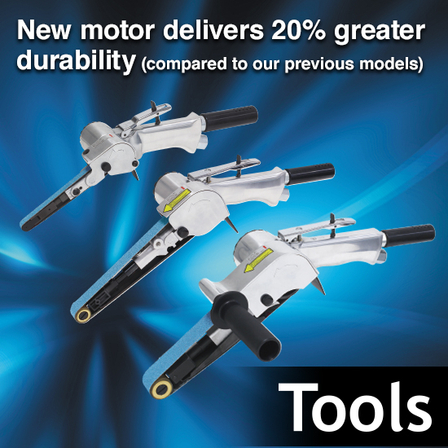

“BELTON CL Type B-10CL/B-20CL/B-30CL” are pneumatic belt sanders featuring a newly developed blade material that significantly extends the lifetime of the air motor. The polished buffed finish gives it a premium look, with a fresh design compared to previous BELTON models. With the optional offset bracket, you can easily perform light grinding tasks such as contour sanding and deburring, using the belt’s flexibility. Features: ■ New motor with 20% greater durability (compared to our previous models) ■ Adjustable body angle to suit working position and workpiece shape ■ Quick belt replacement without tools ■ Belt speed can be easily adjusted by turning the adjust valve with a screwdriver to regulate airflow For more details, please refer to the PDF catalog or feel free to contact us.
basic information
[Specifications of B-10CL] - Air Pressure : 0.6 MPa (6 kgf/cm²) - Air Consumption (No-load): 0.4 m³/min - Free Speed: 17000 min⁻¹ - Belt Speed: 1120 m/min - Abrasive belt Dimensions: 10 x 330 mm - Weight: 0.9 kg - 3-axis composite: 1.21 m/s² - Accessories Included - 2 pcs of Abrasive belt Z #60 x 10 mm (1 pc installed) - Abrasive belt Z#80 x 10 mm - Abrasive belt Z#100 x 10 mm - Abrasive belt Z #120 x 10 mm - Hex socket screw key 1.5 mm - Hex socket screw key 4 mm - Bushing R 1/4 x NPT 1/4
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
