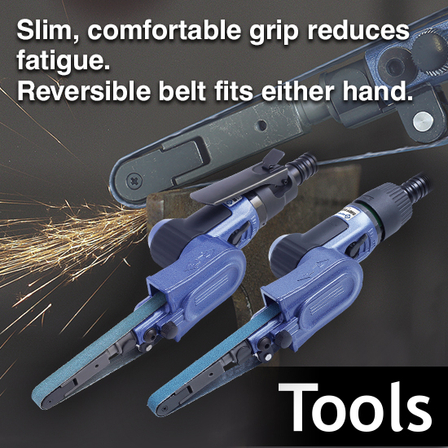

Pneumatic Belt Sander - Baby Belton BB-10B
For light grinding such as deburring and chamfering! Slim, easy-to-hold design and lightweight body help reduce fatigue during extended use
The "Baby Belton BB-10B" is a pneumatic belt sander ideal for light grinding tasks such as deburring and chamfering. It is compact, lightweight, and features switchable forward/reverse rotation. The rotation direction of the abrasive belt can be changed by adjusting the FR valve lever. Two switch types—lever and ring—are available, both designed for use with either hand. Features: ■ Compact and lightweight ■ Switchable forward/reverse rotation ■ Easy operation ■ Ambidextrous design ■ Rotation speed adjustable by lever angle ■ By loosening two hex bolts, the lever direction can be rotated 180° (lever type) *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications (Excerpt)】 - Operating pressure: 0.6 MPa (6 kgf/cm²) - Air consumption: 0.2 m³/min - No-load speed: 17000 rpm - Belt speed: 1120 m/min - Belt dimensions: 10×330 mm - Main unit weight (mass) ・Lever switch type: 0.60 kg ・Ring switch type: 0.50 kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
[Applications] - Light Grinding for Deburring and Chamfering For more details, please refer to the PDF catalog or feel free to contact us.
