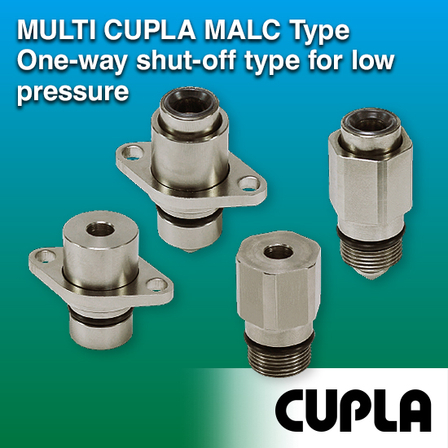

Can be used with a single socket! Multiple piping fittings "Multi Coupler MALC type"
Connect multiple pipes simultaneously with a single connection operation! You can establish an automated and unmanned system for pipe connection and separation.
The "Multi Coupler" MALC-01 type can be used as a standalone socket. The "Multi Coupler" MALC-01 type, MALC-SP type, and HSP type can be used in combination with plugs and sockets, and since the dimensions between plates are standardized to 30mm, they can be installed on the same plate. An eccentricity of up to φ2mm is permissible, so precise alignment during installation is not required. In addition to the MALC-01 type for low pressure, there are also the MALC-SP type for medium pressure and the MALC-HSP type for high pressure. 【Featured Products】 1. MALC-01 type (for low pressure) 2. MALC-SP type (for medium pressure) 3. MALC-HSP type (for high pressure) *For more details, please refer to the PDF document or feel free to contact us.
basic information
For MALC-01 type ■ Applicable fluids: Air, Water ■ Main body material: Brass (Socket: Electroless nickel-phosphorus plating / Plug: Nickel plating) ■ Maximum operating pressure MPa {kgf/cm²}: 1.0 {10} ■ Pressure resistance MPa {kgf/cm²}: 1.5 {15}
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
