"Auto Clamp Unit" and "Adapter" for Multi-Pipe Joint Multi Coupler
Contributes to reducing the total cost of equipment by simplifying the processing and thinning of the mounting plate while maintaining the connection between the plates of the "multi-coupler"!

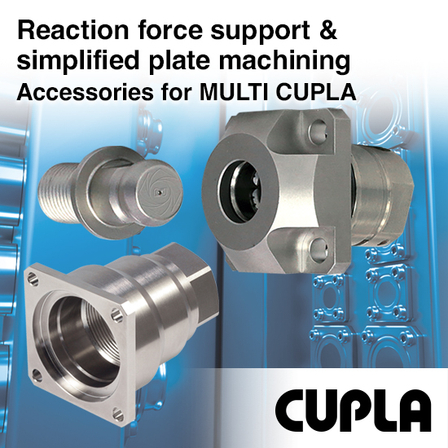

The auto-clamp unit for the "multi-coupler" is a product designed to be mounted on a plate with multiple piping joints, preventing the plates from separating due to fluid pressure. 【Features】 1. Maintains the connection between the plates of the "multi-coupler" 2. Equipped with a lock/unlock mechanism driven by air 3. Allows for the installation of proximity sensors The adapter for the "multi-coupler" MALC type enables direct connection to hoses with tapered threads without the need for threading the plate. 【Features】 1. Simplifies the processing of the mounting plate 2. Reduces the thickness of the mounting plate processing *For more details, please refer to the PDF document or feel free to contact us.*
basic information
【Auto Clamp Unit Specifications】 - Main body material (surface treatment) Socket: Special steel, brass (electroless nickel composite plating, nickel plating) Plug: Special steel (nickel plating) - Maximum allowable load (kN): 20 - Allowable eccentricity: Within φ0.6mm 【Specifications for MALC Type Adapter】 (MALC-01 Type / MALC-SP Type) - Main body material (surface treatment) Adapter for MALC-01 Type: Brass (nickel plating) Adapter for MALC-SP Type: Stainless steel (equivalent to SUS303) - Allowable dimension between plates: 0 to 0.5mm - Allowable eccentricity: φ1.4mm
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
