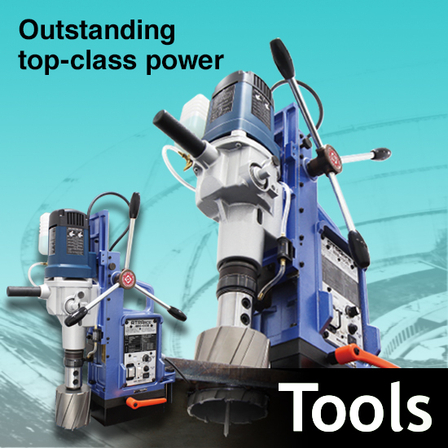

Portable Magnetic Base Drilling Machine "ATRA ACE ARA-100A"
Handles large diameters and deep holes – φ17.5 to φ100 mm for all-round use
The "ATRA ACE ARA-100A" is a portable magnetic drilling machine designed for large-diameter and deep-hole manual applications. It detects overload work and lateral displacement, displaying them via LED to support smooth drilling. [Drilling Capacity] ● JETBROACH One-touch Type 25L φ17.5 to φ35 mm / Plate Thickness 13 to 25 mm 35L φ17.5 to φ40 mm / Plate Thickness 13 to 35 mm 50L φ17.5 to φ65 mm / Plate Thickness 13 to 50 mm 75L φ17.5 to φ55 mm / Plate Thickness 13 to 75 mm ● JETBROACH 75L φ50 to φ100 mm / Plate Thickness 13 to 75 mm ● High Broach One-touch Type 25L φ17.5 to φ35 mm / Plate Thickness 13 to 25 mm ● Twist Drill Maximum φ32 mm
basic information
[Specifications: Main Unit] Power Source: 220 - 240 V AC, 50/60 Hz Magnet Power Consumption: 80 W Maximum Magnetic Force: 17000 N (1733 kgf) Magnet Dimensions: 110 mm × 220 mm Power Cord Length: 5 m Mass (Weight): 30 kg [Specifications: Electric Drill] Rated Power Consumption: 1800 W Rated Current: 8.2 A No-load Speed: 110–210 / 330–660 rpm
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
