Design enhancement "Auto Hinge" Hinge Type 100/200 Series Hollow Hinge
A door without the need for a closer! With the improved durability of the hollow pivot, it is possible to unify the design with hinges that have a closer function!

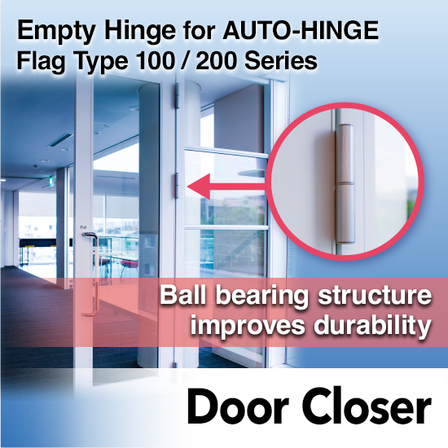

The empty hinge of the Type 100 Series / 200 Series is a hinge without a closing function. It is suitable for the child door of a parent-child door or doors that do not require a closing function. If you want to match the design of the hinges, please use the empty hinge with the same appearance. The bearing structure has improved durability! *If you require a closing function, please use the spring hinge or damper hinge of the same model. [Standard Set Contents] Empty hinge *For more details, please refer to the PDF document or feel free to contact us.
basic information
Hollow Butt Hinge Series 100 ■ Model: 110R・110L・120R-T・120L-T For wooden/aluminum/lightweight steel doors Applicable door width: 900 mm or less Applicable door weight: 40 kg or less ■ Model: 130R・130L For aluminum/lightweight steel doors Applicable door width: 900 mm or less Applicable door weight: 40 kg or less ■ Model: 140R-T・140L-T For copper doors Applicable door width: 900 mm or less Applicable door weight: 60 kg or less Hollow Butt Hinge Series 200 ■ Model: 230R・230L For copper doors Applicable door width: 1200 mm or less Applicable door weight: 120 kg or less ■ Model: 240R-T・240L-T For heavy wooden/aluminum/copper doors Applicable door width: 1200 mm or less Applicable door weight: 120 kg or less
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
