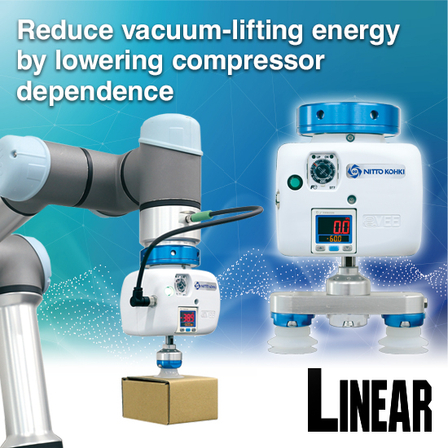

Robot End Effector Electric Suction Hand "e-VEE"
Built-in vacuum pump eliminates the need for compressed air! Contributes to reducing power consumption in suction transport.
The electric suction hand "e-VEE" is an end effector for robots that is useful for suction transport. Since it has a built-in vacuum pump, there is no need for compressed air supply, allowing it to be used anywhere. By suppressing the discharge pressure and flow rate of the compressor, it contributes to power reduction. 【Features】 ■ Energy-saving (the pump automatically stops due to the pressure sensor) ■ Quiet (no air discharge noise) ■ Clean (no external air inflow) ■ Easy connection (no need for hose routing) There are various other features as well. *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 - Maximum vacuum pressure: -66.6 kPa - Air discharge volume: 7.5 L/min - Rated voltage: DC24V - Power consumption: 14.4 W 【Standard Accessories】*Accessories vary depending on the mounting method to the robot. 1. Our screw-type tool flange - Adapter ring - Flange adapter - Suction pad φ35 (1 piece) - Pad adapter M6 (1 piece) 2. Manual robot hand changer by Cosmech Co., Ltd. - Master cylinder - Tool adapter - Suction pad φ35 (1 piece) - Pad adapter M6 (1 piece) 3. If you have a manual robot hand changer by Cosmech Co., Ltd. - Tool adapter - Suction pad φ35 (1 piece) - Pad adapter M6 (1 piece) 【Optional Items】*Required for connection. Please check the connector pin connection type on the robot body side. - Robot communication cable 1. 8-pin female-to-female (length 300 m) 2. 8-pin female-to-male (length 300 m) 3. 8-pin female-to-bare wire (length 1500 m)
Price range
Delivery Time
Applications/Examples of results
*For shapes and sizes of suction pads other than those listed in the PDF document, as well as for the purchase of suction handles, please refer to the Convum Co., Ltd. online shop. *For more details, please refer to the PDF document or feel free to contact us.
