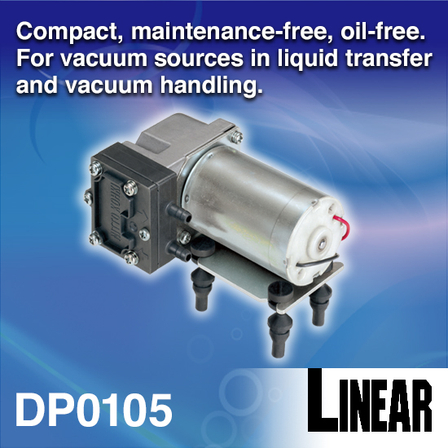

Palm-sized Compressor/Vacuum Pump “DP0105”
Compact, oil-free and maintenance-free pump! Suitable as a vacuum source for lightweight part handling systems!
The DP0105 is a compact compressor/vacuum pump equipped with a DC brush motor. It uses a cup seal system in the sliding section, enabling a maintenance-free, oil-free design with a high compression ratio despite its small size. This pump is suitable as an air source for liquid transfer and agitation, or as a vacuum source for lightweight part handling systems. Available in both 12 V DC and 24 V DC models. Features: ■ Compact and lightweight ■ Dual function: compressor and vacuum pump ■ Oil-free construction
basic information
Specifications for DP0105-X1 (12 V DC): - Attainable Vacuum: -66.7 kPa - Free Air Displacement: 2.8 L/min - Rated Voltage: 12 V DC - Maximum Pressure: 250 kPa - Maximum Current: 1.9 A - Working Pressure Range: -66.7 to 100 kPa - Duty Cycle: 30 minutes - Rated Performance (MTTF): 2000 hours - Mounting Dimensions: 42 (L) x 24.5 (W) mm - Weight: 0.36 kg
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
