For Medical Devices and Analytical Instruments - Compressor/Vacuum Pump “DP0110-X3”
Adjustable airflow output! Operates only when needed for low power and high efficiency

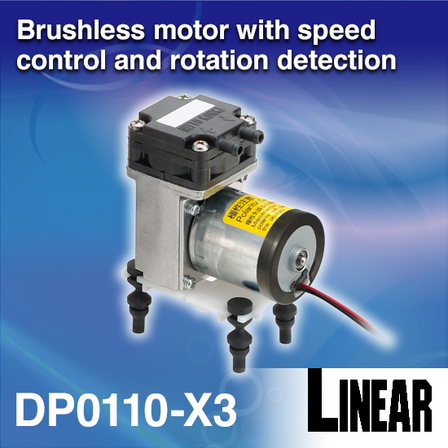

The DP0110-X3 is a compact compressor/vacuum pump equipped with a dedicated DC brushless motor for pulse-width modulation (PWM) control. The airflow output can be adjusted by controlling the motor speed. The pump also features a rotation detection function. Features: ■ Motor speed control Operates only when needed, enabling low power consumption and high efficiency. Airflow output can be controlled during operation. ■ Rotation detection function Useful for detecting equipment abnormalities.
basic information
Specifications: - Attainable Vacuum: -66.6 kPa - Free Air Displacement: 7.5 L/min - Rated Voltage: 12 V DC - Maximum Pressure: 150 kPa - Maximum Current: 1.4 A - Working Pressure Range: -66.6 to 150 kPa - Duty Cycle: Continuous - Rated Performance (MTTF): 8000 hours - Mounting Dimensions: 50(L) x 30(W) mm - Weight: 0.3 kg
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
