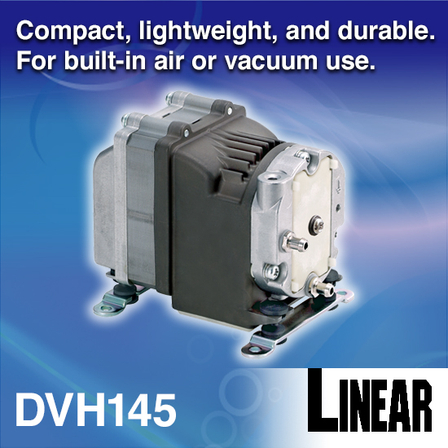

For Liquid Filling Equipment and More - Vacuum Pump “DVH145”
Palm-sized 10 cm vacuum pump for built-in applications
The DVH145 is a DC-powered, linear-motor-driven free piston vacuum pump designed for built-in applications. In a linear-motor-driven free piston system, the piston reciprocates through the combined action of electromagnetic force and spring force. It achieves low vibration and quiet operation. This product can be used for precise liquid filling into small containers such as soy sauce bottles for bento boxes. Features: ■ Compact and lightweight ■ Quiet operation ■ Low vibration ■ Oil-free / Clean ■ Reduced pulsation ...and more
basic information
Specifications: - Attainable Vacuum: -60 kPa - Free Air Displacement: 3 L/min - Rated Voltage: 12 V DC - Power consumption: 8.9 W - Duty Cycle: Continuous - Rated Performance (MTTF) : 10000 hours - Mounting Dimensions: 76(L) x 70(W) mm - Weight: 0.91 kg
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
