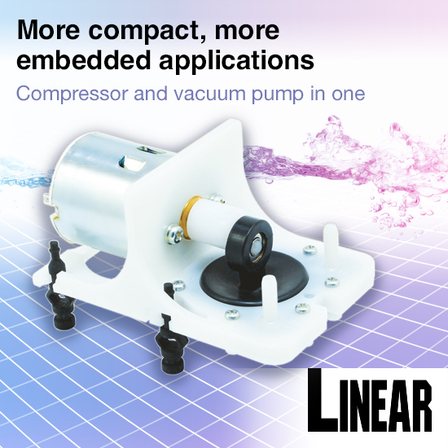

DC Pump "DP0125A", Compact and Weighing Approximately 75 g
Newly redesigned for enhanced durability and size reduction
The DP0125A is a DC motor-driven pump that functions as both a vacuum pump and compressor. Compared to our previous model DP0125, it offers more compact design and 2.5 times greater durability. Ideal for integration into devices such as disinfectant sprayers and caregiver toothbrushes. Features: 1. Compact design 2. 2.5 times more durable (compared to previous model DP0125) 3. Dual-function: vacuum pump and compressor For more details, please refer to the PDF catalog or feel free to contact us.
basic information
Attainable Vacuum: -33.3 kPa {-250 mmHg}* Free Air Displacement: 2.5 L/min Rated Voltage: 12 V DC Maximum Pressure: 30 kPa {0.3 kgf/cm²} Rated performance (MTTF): 1000 hours Inlet : 3 mm O.D. straight barb Outlet: 3 mm O.D. straight barb Weight: 75 g *Consult with us for continuous use at pressures other than -33.3 kPa to 30 kPa.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
