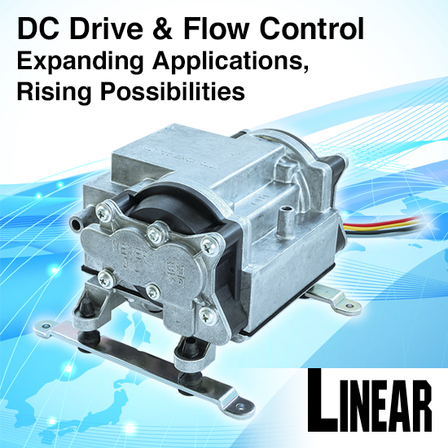

DC-Driven Diaphragm Pump “DVC0301B”
Diaphragm pump with output control function for adjustable flow rate and pressure
The "DVC0301B-Y1" is a DC-driven diaphragm pump that functions as both a compressor and vacuum pump. The "DVC0301B-Y2" is a DC-driven diaphragm pump designed exclusively for compressor use. Both models feature an output control function, enabling adjustment of flow rate and pressure. Features: - Oil-free design for clean air supply - Long service life - Low operating noise and vibration Please refer to the PDF catalog for specifications and external dimensions. https://nitto-kohki.meclib.jp/L17en/book/data/L17en-a_DVC0301B.pdf
basic information
For DVC0301B-Y1: Attainable Vacuum: -26.7 kPa {-200 mmHg} Rated Airflow: 30 L/min Rated Voltage: 24 V DC Maximum Pressure: 25 kPa (0.25 kgf/cm²) Rated performance (MTTF): 10000 hours Inlet: 10.5 mm O.D. straight barb Outlet: 8.5 mm O.D. straight barb Weight: 1.9 kg Control Signal Voltage: 0 to 5 V DC *During controlled operation, the pump output is proportional to the input signal voltage. The adjustable range is 0.7 V to 4.5 V DC (maximum 5 V DC). When there is no control signal input (OPEN) or the input signal voltage is 4.5 V DC or higher, the pump operates without control (output 100%).
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
