Automate Surface Finishing! ORBITAL SANDER APS-125-01
From rough grinding to fine finishing. Double-action motion leaves no swirl marks.

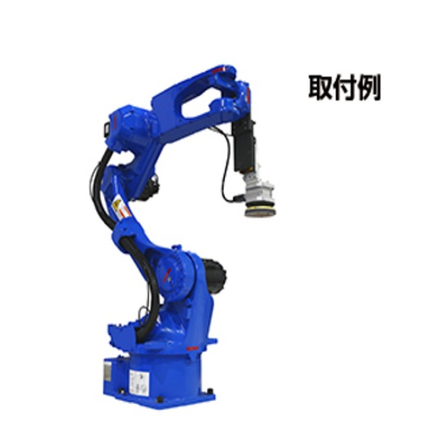

ORBITAL SANDER APS-125-01 is a double-action sander designed for automated equipment and robotic applications, suitable for surface finishing of a wide range of materials including metal, resin, and stone. An intermediate pad ensures uniform surface finishing, while the double-action motion prevents swirl marks. 【Features】 ・Secure mounting to robots using screw holes and positioning pins ・Sponge intermediate pad follows uneven workpiece surfaces ・Compatible with a wide range of sanding papers for various applications For details, please download the catalog “Pneumatic Tool Series for Automatic Machines.”
basic information
【Specifications】 Air Pressure: 0.6 MPa (6kgf/cm2) Air Consumption (No-load): 0.45 m3/min Free Speed: 11000 min-1 Orbit Diameter: 5 mm Paper Size: 125 mm Mass (Weight): 1.5 kg 【Standard Accessories】 ・2 pieces of Abrasive Paper #80 (Velcro) ・2 pieces of Abrasive Paper #120 (Velcro) ・17 mm Single Ended Spanner ・Silencer ・HI CUPLA 20PM Steel ・Bushing R1/4 x NPT 1/4
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
