Robot-compatible! Belt sander "Belton B-20CL-01"

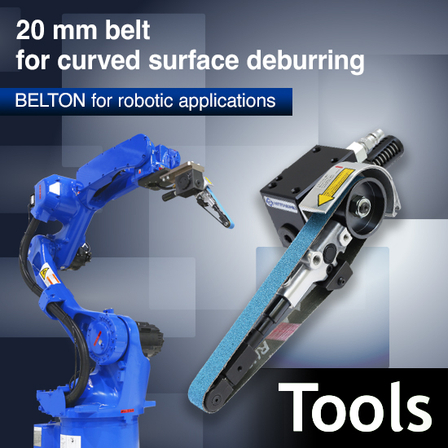

Deburring of 'Belton' with robots! A 20mm wide belt is effective for deburring curved areas.

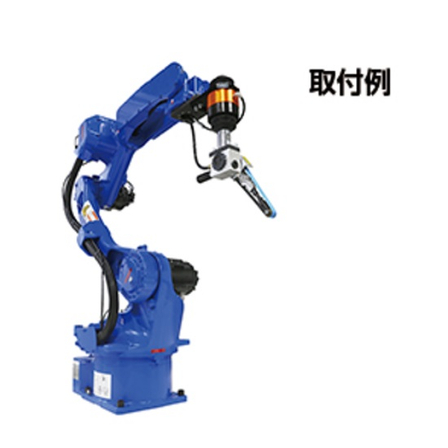

The "Belton B-20CL-01" is an air belt sander that can be attached to automatic machines and robots for grinding and polishing workpieces using a grinding belt, with a belt width of 20mm. It is also capable of R-surface grinding utilizing the deflection of the belt, contributing to the automation of deburring after processing aluminum castings. 【Features】 ● Ideal for deburring curved sections with a belt width of 20mm ● Compatible with curved surface processing due to the offset bracket ● Secure attachment to robots using screw holes and positioning pins ● Compatible with FINESYSTEM's air float attachment (mounting fixture required) *For more details, please refer to the "Air Tool Series for Automatic Machines" available for download in the catalog.
basic information
【Specifications】 Operating Pressure: 0.6MPa (6kgf/cm²) Air Consumption: 0.52 m³/min No-load Rotational Speed: 18,000 min⁻¹ Belt Speed: 2,770 m/min Belt Dimensions: 20×520mm Body Weight: 1.6kg Mounted Belt: Grinding Belt Z #60×20mm 【Standard Accessories】 Grinding Belts Z #60, #80, #100, #120×20mm: 1 of each Hexagonal Wrenches 2.5mm, 4mm: 1 of each Silencer: 1 piece Coupler 20PM: 1 piece Offset Bracket 20 Ass'y (mounted on the main body)
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
