Automatic machine compatible! Pneumatic die grinder "Air Sonic L-35C-02"
Supports deburring of complex shapes! Achieves high-speed rotation with a unique air motor.

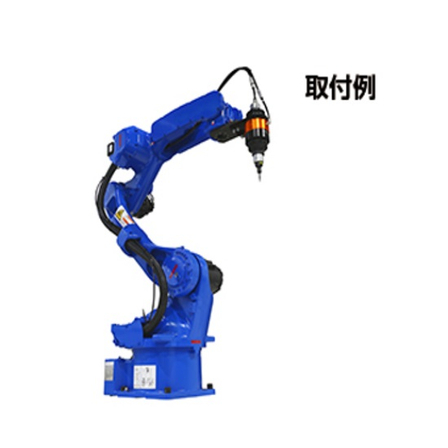

The "Air Sonic L-35C-02" is an air-powered die grinder designed for automatic machines and robot installations, using a spindle-mounted grinding stone or rotary bar for grinding. It can handle complex shapes and burrs with a φ6 axis end tool, making it suitable for grinding die-cast products. By combining it with a floating mechanism, it contributes to a stable finish. 【Features】 ● Enables smooth grinding at high speeds ● Easy to attach to robots with a body diameter of φ40 ● Compatible with various end tools with an attachment axis diameter of Φ6mm ● Compatible with air float attachments from FINESYSTEM Co., Ltd. *For more details, please refer to the "Air Tool Series for Automatic Machines" available for download in the catalog.
basic information
【Specifications】 Operating Pressure: 0.6MPa (6kgf/cm²) Air Consumption: 0.35m³/min No-load Rotational Speed: 37,500min⁻¹ Chuck Diameter: φ6 Body Weight: 1.1kg 【Standard Accessories】 14mm Wrench: 2 pieces
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
