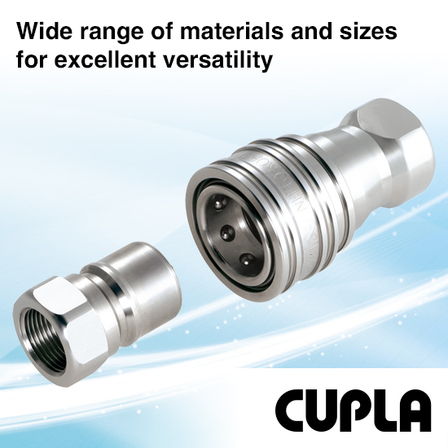

Highly Versatile Quick Connect Coupling – SP CUPLA Type A (Stainless Steel)
Built-in automatic shut-off valves in both plug and socket prevent liquid spillage.
SP CUPLA Type A is a medium-pressure, general-purpose quick connect coupling. Both the socket and plug are equipped with automatic shut-off valves. Various body materials, sizes, and seal materials ensure excellent versatility. 【Features】 ・Automatic shut-off valves in both socket and plug prevent liquid spillage when disconnected. ・A standardized lineup of body materials, sizes, and end configurations supports a wide range of applications and conditions.
basic information
【Specifications】 Body material: Stainless steel Size (Thread): 1/8", 1/4", 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" Working pressure: 2.0, 3.0, 4.5, 7.5 MPa (varies by size) Working temperature range: −20°C to +80°C, others 【Applications in Secondary Battery Manufacturing】 ● Material Preparation Process (Battery Material Production) ・For mixing equipment in reaction and mixing processes ・For spray dryers in drying processes ● Electrode Manufacturing Process (Battery Manufacturing Process) ・For continuous kneaders and batch mixers in mixing processes ・For continuous drying ovens in drying processes ・For laminating, stacking, and assembly in assembly processes
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
