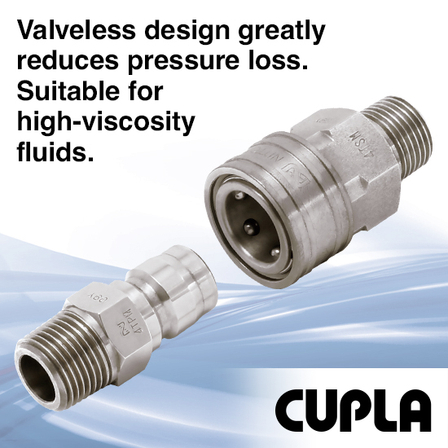

Rich variety of mounting shapes! Quick fluid coupling "TSP Coupler" made of stainless steel.
Significantly reduced pressure loss and achieved high flow rates! It is also suitable for high-viscosity fluids!
The "TSP Coupler" is a quick fluid connector for medium pressure and general use. Its valve-less structure makes it suitable for high-viscosity fluids. We offer a wide range of body materials, sizes, and mounting shapes. 【Features】 - The valve-less structure significantly reduces pressure loss, allowing for high flow rates. - It is suitable for high-viscosity fluids (such as grease). - Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. - Blade hoses can be attached without the need for hose clamps (TPN type/TSN type).
basic information
【Specifications】 Main body material: Stainless steel Mounting size: R1/8~R2, Rc1/8~Rc2, 1/8~2 hose Maximum operating pressure: 2.0, 3.0, 4.5, 7.5 MPa (varies by size) Operating temperature range: -20℃~+80℃, etc. 【Active in these scenes of secondary battery manufacturing process!】 ● Raw material process (battery material manufacturing process) - In the stirring equipment during the reaction and stirring stage - In the spray dryer during the drying stage ● Raw material process (battery manufacturing process) - In the continuous kneader and batch mixer during the mixing stage - In the continuous drying furnace during the drying stage
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
