Petal fastener
The world's first! Bolt and nut loosening and falling prevention spring.

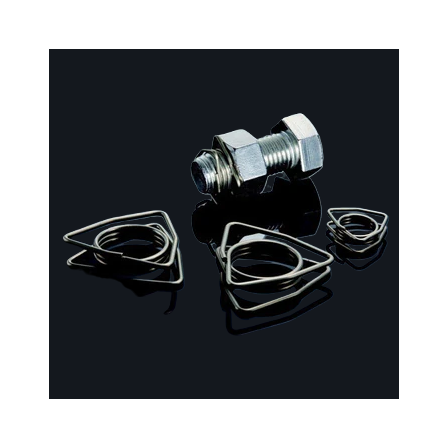

Bolt and nut loosening, drop prevention spring. Can be easily installed using commercially available socket wrenches. Passed tests using an impact-type vibration testing machine compliant with NAS3350 standards. Available sizes range from M4 to M36. *For more details, please download the PDF or feel free to contact us.
basic information
1. Tightening effect due to the spring's compressive force and pressure By attaching it to the bolt, the nut surface is pressed by the three sides of the spring, demonstrating a tightening effect. 2. Visual confirmation of completion Due to the tension, the triangular outer diameter deforms into a hexagon. When the end of the nut contacts the nut and expands, and it becomes parallel to the nut, the installation is complete. 3. Can be installed on existing bolts and nuts If the remaining length of the bolt is five turns or more, installation is possible. In the case of new installations, it can be inserted in the order of the 12-point socket, petal fastener, and nut for integrated installation. *For more details, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
Related Videos
catalog（2）
Download All Catalogs
Recommended products
Distributors
Ohta Corporation is a company primarily engaged in the manufacturing of precision machined products and the wholesale of screw-related components. We have established an in-house production system for small lot production of machined products, and by enhancing our "supply capacity," "flexibility," and "quality," we are able to provide services that further satisfy our customers. Please feel free to consult with us if you have any requests.
