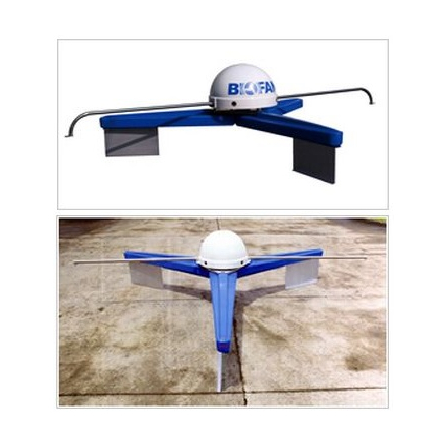

"Biofan" - Rising Circulation Flow Generation Device
It is a device that promotes self-purification and regenerates closed water bodies through the generation of upward circulation flow.
The "Biofan" vertical circulation flow generation device slowly rotates blades on the water surface to create vertical circulation flow. This circulation flow allows bottom water to absorb oxygen, promoting uniformity throughout the pond and contributing to water quality purification. It gathers a large volume of water from a wide area and circulates it vertically with minimal energy. It is not a device that pumps or draws water but one that induces natural flow. The flow created by the device facilitates the food chain and establishes a water area with a diverse ecosystem. 【Features and Effects】 ○ Flow created on the water surface by the device → Absorbs oxygen and releases odors ○ Flow created in the bottom layer by the device → Improves bottom sediment through the rotational effect of oxygen absorbed at the surface → Prevents hypoxia in the bottom layer and suppresses the leaching of nutrients and the generation of hydrogen sulfide → As sludge decreases and becomes food for organisms, and if plankton production cannot keep up, transparency gradually recovers ○ Vertical circulation created by the device → Guides phytoplankton to the shading layer and suppresses their proliferation For more details, please contact us or download the catalog.
basic information
【Specifications】 ○Model: GYS2-25 / GYS2-60 ○Power Supply: Single-phase 100V, Single-phase 200V, 50Hz, 60Hz ○Output: 25W / 60W ○Blade Rotation Diameter: 1860mm / 3000mm ○Weight: 23kg / 53kg ○Flow Rate: Approximately 14m³/min / Approximately 35m³/min ○Effective Water Depth: Approximately 4m / Approximately 8m ●For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
【Usage】 ○ Dam lakes, golf courses, ponds, fish farming sites, fishing ponds, agricultural water, park ponds, etc. ● For more details, please contact us or download the catalog.
