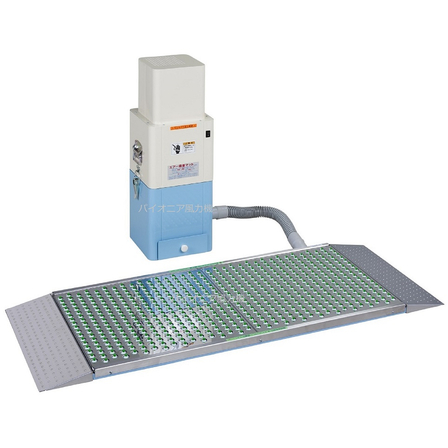

Air suction mat [Easily removes dirt from shoe soles and wheels]
Simply place it in the passageway to easily remove dirt attached to shoe soles and wheels! *An option with a HEPA filter for virus protection is available.
The "Air Suction Mat" can be used simply by placing it at the entrance or in corridors of buildings, effectively removing dirt attached to shoe soles and wheels through a spring brush and air suction. It is a high-performance, energy-saving entrance mat. It is also recommended for various stores and facilities, including retail shops and amusement facilities with high customer traffic, as well as restaurants, hospitals, and pharmacies where cleanliness is prioritized. 【Features】 ■ High-Performance Cleaning This innovative shoe sole cleaner scrapes away foreign substances (dirt and dust) using the rebound force of the spring brush and instantly sucks them away with powerful air. ■ Energy-Saving and High Efficiency The switch activates only when people or carts pass by. It also only suctions the areas where shoe soles or wheels have stepped, eliminating waste and saving energy. ■ Easy Installation and Maintenance It can be used immediately by simply placing it at entrances or corridors. Foreign substances are collected in a dust collection unit, which is easy to empty. No other maintenance is required. ■ Safety Considerations With a slim design of just 30mm (with ramps on both ends), the brush movement is minimal, allowing safe passage for small children and thin high heels. *For details and specifications, please check the "Download" section.
basic information
【AM-1】 Width 505 × Depth 1030 × Height 30 × Slope 150 【AM-2】 Width 605 × Depth 910 × Height 30 × Slope 150 【AM-3】 Width 805 × Depth 610 × Height 30 × Slope 150 【Common Specifications】 Power Supply: Single-phase AC 100V/200V/220V Power: 1.0kW Load Capacity: 200kg (standard) *Up to 500kg (optional) is possible. For more than that, please consult us. *Total load when using a four-wheel cart Control: Sensor activation method *The specifications listed may be changed without notice for improvement purposes.
Price information
-
Delivery Time
Model number/Brand name
AM-1/AM-2/AM-3
Applications/Examples of results
■Factory and Workshop ・Visitor pathways in factories ・Entrances and corridors in food factories, etc. ・Kitchen entrances in restaurants ■Combined with Clean Equipment ・Integration into air showers ■Public Facilities ・Clinics, hospitals, pharmacies, drugstores ・Schools, libraries ・Social welfare facilities, health facilities
catalog（3）
Download All Catalogs
Recommended products
Distributors
Our company is widely developing unique equipment that contributes to creating a clean environment using our proprietary technology. We also provide a comprehensive service from the design to the manufacturing and construction of original equipment and systems tailored to our customers' needs. For anything related to clean environments, please consult Pioneer Wind Power Co., Ltd.
