**New Product** Microwave Proximity Sensor 'BSS300/BSS301' The 'BSS300/BSS301' is a sensor that uses radio waves (microwaves) to detect the movement and presence of people, vehicles, and objects without contact. In the current situation where contactless operations are required due to the COVID-19 pandemic, our new product can assist you! (Note: The BSS301 is scheduled for future release) **Examples of Use** - Gate (shutter) opening and closing sensor - Lighting activation sensor - Vehicle detection sensor - Collision prevention sensor - Water level monitoring sensor - Intrusion detection sensor, etc. **Features** - Usable in outdoor environments This sensor utilizes 24GHz band radio waves (microwaves). Microwaves are less affected by rain, snow, fog, and backlighting, which reduces false detection in outdoor environments and allows for effective use. - Selectable detection modes based on usage You can choose between two modes for detecting moving objects and stationary objects according to the usage situation, enabling detection tailored to the circumstances. For more details, please visit the product introduction page or feel free to contact us.

New Product: Microwave Proximity Sensor 'BSS300/BSS301' The 'BSS300/BSS301' is a sensor that uses radio waves (microwaves) to detect the movement and presence of people, vehicles, and objects without contact. In the current situation where contactless operations are required due to the COVID-19 pandemic, our new product can assist you! 【Examples of Use】 ● Gate (shutter) opening and closing sensor ● Lighting activation sensor ● Vehicle detection sensor ● Collision prevention sensor ● Water level monitoring sensor ● Intrusion detection sensor, etc. 【Features】 ● Usable in outdoor environments This sensor utilizes 24GHz band radio waves (microwaves). Since microwaves are less affected by rain, snow, fog, and backlighting, it can reduce false detections in outdoor environments. ● Selectable detection modes according to usage You can choose between two modes for detecting moving objects and stationary objects, allowing for detection tailored to the situation. For more details, please visit the product introduction page or feel free to contact us.

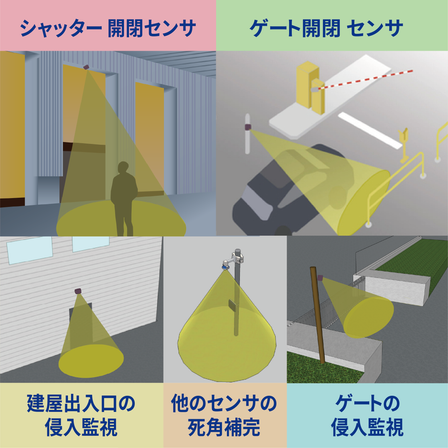

This sensor, as its name suggests, monitors the surrounding area and detects individuals who enter a detection zone of 0.5m to 20m. Other features include: ● Wide-angle monitoring of close-range areas It monitors with a beam width of approximately 52° horizontally and 45° vertically. ● High separation resolution of 20cm. This means it can distinguish between two closely approaching points or lines, detecting changes of 20cm. (Our conventional sensors detect at 2m.) As a result, even when emitting radio waves towards the ground, it can differentiate between the ground and intruders for monitoring. ● Strong against changes in the surrounding environment, such as weather, due to the characteristics of microwaves. Unlike conventional passive sensors used for close-range outdoor monitoring, it is not affected by temperature or weather changes. (Passive sensors detect people by receiving infrared radiation emitted from the human body.) Examples of installation for close-range sensors include: ● Pole monitoring ● Gate intrusion monitoring ● Building entrance intrusion monitoring, among others. Particularly in pole monitoring, it can complement the blind spots that occur at the feet of other intrusion monitoring sensors by monitoring from above towards the ground, allowing for a more seamless detection area to be established.

At Pal Giken, we are developing various sensors that use "microwaves," and this time we will explain how they detect intrusions. ◆◆ Two Detection Methods ◆◆ Our microwave sensors support two detection methods. 1) Beam Reflection Detection Method A single sensor is installed, and the transmitted wave output from it defines the detection area. The detection range depends on the antenna angle of the sensor, but the sensor alone covers a wide distance. When a target intercepts the transmitted wave from the sensor, it is received as a reflected wave and detected as an "intrusion." 2) Beam Interruption Method This method configures the detection area by positioning the sensor and reflector opposite each other. The transmitted wave output from the sensor hits the reflector and is received as a reflected wave. There are also products that configure the detection area using a transmitter and receiver. In this case, the transmitted wave output from the transmitter is received by the receiver. In both cases, the levels that serve as the basis for transmission and reception are monitored, and if the wave is interrupted due to an intrusion, causing the level to fall below a threshold, it is detected as an "intrusion."

Microwaves are a type of radio wave and a form of electromagnetic wave. Electromagnetic waves propagate as repeating waves, and the number of repetitions per second is called frequency (measured in hertz, Hz). The length from the peak of one wave to the peak of the next is called wavelength. The name of electromagnetic waves changes according to their frequency, and their applications also vary based on their characteristics. In our company, we refer to radio waves with frequencies ranging from 3 GHz to 30 GHz (wavelengths from 10 cm to 1 cm) as "microwaves," and we use 24 GHz band radio waves in our microwave sensors. ◆◆ Features of Microwaves ◆◆ The features of microwaves include: - High directivity - Resistance to weather changes such as rain, fog, and snowfall - Ability to penetrate materials like resin, making them unaffected by obstacles These features, combined with our unique algorithms (signal processing technology), enable long-distance detection even in harsh environments. Additionally, our sensors can be used without a license. They can be used both indoors and outdoors in Japan, allowing for installation in various situations.
