Room-temperature curing two-part conductive epoxy adhesive with automatic mixing — ONE-HAND MIXING

PR情報エリア

Room-temperature curing two-part conductive epoxy adhesive with automatic mixing — ONE-HAND MIXING


No weighing, measuring or manual mixing. Just push to dispense a two-part conductive adhesive—ideal for room-temperature electrical bonding where soldering is difficult.

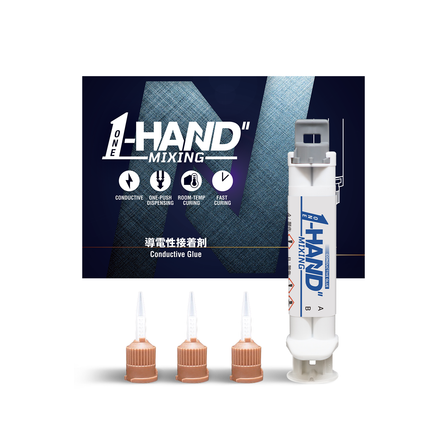

ONE-HAND MIXING is a two-part conductive epoxy adhesive filled with silver filler. A dedicated cartridge and static mixer nozzle automatically mix the two components as you dispense. ○ No weighing, measuring or manual mixing is required, helping reduce variation in the mixing ratio between operators. ○ Because it cures at room temperature, it is suitable for electrical bonding around heat-sensitive plastic parts, FPCs, LEDs and sensors. ○ It enables conductive bonding without a soldering iron, even on materials that are difficult to solder, such as glass, plastics, aluminum and stainless steel. ○ After curing, it retains flexibility, making it useful for repair or bonding in areas subject to bending or vibration. * For detailed data, please refer to the TDS and special website.

ONE-HAND MIXING Special-Website:

basic information

Sales formats: ◎ Disposable set of 3 cartridges ◎ Large-capacity type containing more than three disposable cartridges Typical properties: ■ Color: silver gray ■ Tack-free time (25°C): approx. 2 hours ■ Time until electrical resistance appears (25°C): more than half a day ■ Time until resistance stabilizes (25°C): more than 2 days ■ Stable volume resistivity: 2×10^-4 Ω·cm ■ Adhesive strength (25°C): Cu 5 MPa, Al 6 MPa, stainless steel 6 MPa, FR-4 5 MPa, ABS 4 MPa ■ Shelf-life guide: 6 months after purchase At low temperatures, the reaction slows down. Allow sufficient curing time until the resistance stabilizes. Heating the applied adhesive with a hair dryer or similar tool can help the resistance stabilize faster.

Price information

List Price: ¥9,980/set ~ Now on sale at amazon.JP and the ONE-HAND MIXING Special Website! ※Purchasing via the ONE-HAND MIXING Special-Website offers the best value.

Price range

P1

Delivery Time

P3

Model number/Brand name

ONE-HAND MIXING

Applications/Examples of results

■ Electrical bonding where soldering heat must be avoided LEDs, sensors, FPCs, plastic parts, coaxial-cable outer conductors and more ■ Repair of PCBs and electronic components Repairing lifted PCB traces, restoring broken circuits without jumper wires, and forming or repairing circuit patterns ■ Automotive and on-site repair Repairing broken rear defroster grid lines, reattaching detached terminal tabs, and making electrical connections where a soldering iron cannot be used ■ R&D and prototyping Electrical bonding for experimental equipment and measurement fixtures, connections for components used in cryogenic environments, and grounding materials for circuit boards

Detailed information

catalog（4）

Download All Catalogs

Conductive Adhesive_Product Catalog_Japanese ONE-HAND MIXING 8th Edition Basic

PRODUCT

Contact this catalog

Conductive Adhesive_Product Catalog_Japanese ONE-HAND MIXING Version 8 Data

TECHNICAL

Contact this catalog

Conductive Adhesive_Product Catalog_English ONE-HAND MIXING-8th Edition Basic

PRODUCT

Contact this catalog

Conductive Adhesive_Product Catalog_English ONE-HAND MIXING - 8th Edition Data

TECHNICAL

Contact this catalog
