Online Parallel Organic Synthesis Device "STINGRAY"
Significantly improve the quality of the pharmaceutical process! Design that strongly supports the promotion of QbD.

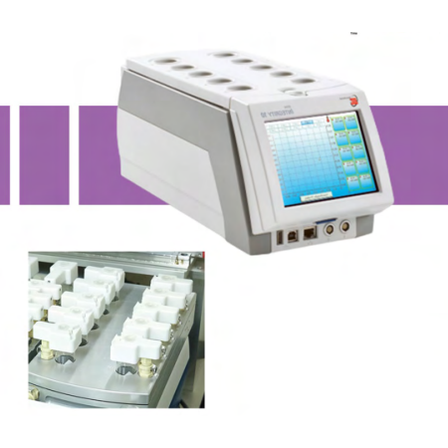

The "STINGRAY" is an online parallel organic synthesis device capable of precise reaction control. This product comes with an economical purchase price and low running costs, and it includes a standard one-year warranty. It is equipped with an injection valve that allows for automatic and online measurement of sampled samples. We also offer "Integrity 10," which features 10 reaction vessels that can be individually heated, cooled, and stirred. It is characterized by excellent linearity in temperature rise, no interference between adjacent vessels, and high stability at the set temperature. 【Features】 ■ Economical purchase price and low running costs, with a standard one-year warranty ■ Equipped with an injection valve for automatic measurement of sampled samples ■ Compact footprint allows for installation within a fume hood ■ Individual recipes can be prepared separately ■ Up to 10 reactions can be monitored and sampled in parallel and unattended *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications】 ■ Adjustable temperature: -30℃ to 150℃ ■ Valve: 6-port injection valve (pressure resistance: 5000psi, high pressure specification available as an option) ■ Main unit size: W1300mm x D650mm x H900mm (weight 90kg) ■ Usable vessel capacity: Classic Vessel 4-20ml, Low Volume Vessel 1-4ml ■ Water supply and drainage: Not required *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications and Examples of Achievements (Partial)】 ■ Screening and optimization of processes in pharmaceutical processes, conducting solubility tests ■ Selection of excellent drug candidates and process development in the early stages of development ■ Implementation of a systematic, scientific, risk-based, and proactive approach to promote QbD (Quality by Design) ■ Rapid screening of solvents, reagents, and catalysts ■ Stress testing and degradation testing, including stability evaluation of pharmaceuticals, identification of degradation products and pathways, and examination of the effects of additives on stability (parallel screening of thermal decomposition, oxidation, alkalinity, humidity, and light) *For more details, please download the PDF or feel free to contact us.
