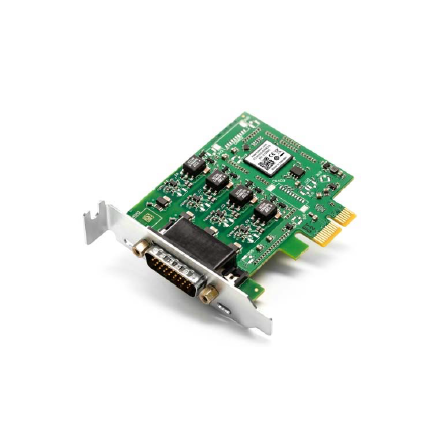

High-speed CAN card 'Kvaser PCIEcan 4xHS'
Compliant with CAN FD! Full compatibility with J1939, CANopen, NMEA 2000, and DeviceNet.
The Kvaser PCIEcan 4xHS is a highly integrated high-speed Controller Area Network (CAN) card. It allows the addition of four high-speed CAN network channels to various standard computer boards equipped with PCI Express functionality. This add-on board features silent mode, error frame detection, and an onboard buffer. Its compact housing is suitable for many embedded data acquisition systems and includes a galvanically isolated CAN bus driver. It supports a wide operating temperature range from 0°C to +85°C. 【Features】 - Supports CAN FD - Quick and easy plug-and-play installation - Supports high-speed CAN (ISO 11898-2) - The slim card (86x69mm) enables extremely compact systems - Supports silent mode for analysis tools - Supports Kvaser Linx *For more details, please download the PDF or feel free to contact us.
basic information
【Technical Specifications (Partial)】 ■Received messages per second: 20000 mps ■Sent messages per second: 20000 mps ■Channels: 4 ■Interface: PCI Express ■OS: Windows 10, 8, 7, Vista, XP, and Linux ■Connector: 26-pin HD D-SUB ■Galvanic isolation: Yes *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Recommended products
Distributors
Renas Corporation imports products from nine overseas companies and supports sales and technology to domestic trading companies. We handle various products necessary for data analysis and measurement focused on Controller Area Network (CAN), including CAN interfaces, data loggers, CAN input/output analog/digital measurement modules, and CAN/LIN protocol analyzers. Please feel free to contact us if you have any inquiries.
