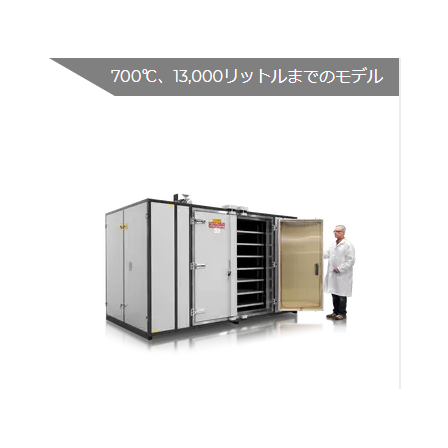

Electric Furnace LGP – Large Industrial Oven
The furnace volume ranges from 500 to over 13,000 liters, and the maximum operating temperature range is from 250°C to 700°C.
The LGP large general-purpose oven offers a wide variety of options in terms of size and maximum temperature. Sizes range from 500L to over 13,000L, and maximum temperatures are available from 250°C to 700°C. Customization to meet customer requirements is also a feature of the LGP series. A typical example includes the incorporation of advanced control systems and data recording functions compliant with Nadcap heat treatment certification AMS2750E. Modifications to facilitate the handling and loading/unloading of heavy items, as well as the provision of large capacity sizes not listed in the catalog, are also possible.
basic information
Standard Specifications • Maximum Operating Temperature 250℃ / 425℃ / 625℃ / 700℃ • 3216CC Temperature Controller (PID Digital Setting and Display) • Chamber Volume 500L to 13820L • Sturdy and Proven Large Capacity Design • Robust Structure Suitable for High Load Cycles • Durable Fan Wheel Achieving Efficient Air Circulation and High Temperature Uniformity • Interior Made of SUS430 Ferritic Stainless Steel with Excellent Corrosion Resistance • External Structure of Shaped Steel with Zinc Coating and Painted Mild Steel • Door Options: Single Opening / Double Opening • Shelf Mounting Grooves (Standard up to 1000L, Optional up to 5830L) • Low Heat Storage Insulation to Enhance Thermal Responsiveness and Energy Efficiency • Fully Adjustable Chamber Ventilation • Overheat Prevention Function (Recommended for Protecting Valuable Samples or for Unattended Operation) • Independent Heating Element Overheat Prevention Function (LGP 4, LGP 6)
Price range
Delivery Time
Model number/Brand name
Carbolite Gero
Applications/Examples of results
Customization to meet customer requirements is also a feature of the LGP series. A typical example is the incorporation of an advanced control system and data recording functions compliant with Nadcap heat treatment certification AMS2750E. Modifications to facilitate the handling and loading/unloading of heavy items, as well as the provision of large-capacity sizes not listed in the catalog, are also possible.
