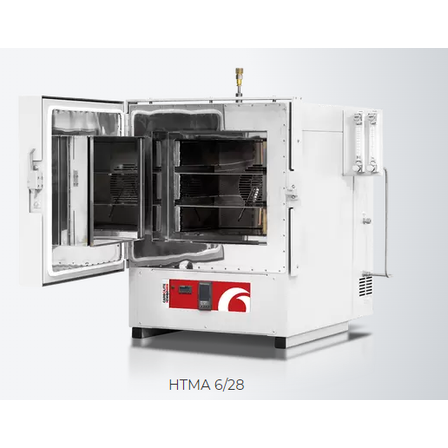

Electric Furnace: HTMA - High-Temperature Inert Gas Oven
The HTMA high-temperature inert gas oven is suitable for use in an inert gas atmosphere.
Gas flow control is divided into purge gas and process gas, so after purging the atmosphere, process gas can be used at a low flow rate. The switching between purge gas and process gas is set to manual as the standard, but it is also possible to choose a programmable automatic control system as an option. The oxygen level inside the chamber can be reduced to 50 ppm.
basic information
Standard Specifications • Maximum operating temperature 400℃ / 500℃ / 600℃ / 700℃ • Carbolite Gero 301 PID temperature controller (one programmable heating and maintenance operation. Equipped with overheat prevention function) • Furnace volume 28L / 95L / 220L / 500L / 1000L • Rear-mounted fan and side air guide to achieve horizontal "airflow" • Joints completely welded to maintain modified atmosphere • Manual gas control with needle valve and flow meter (made of nickel brass) • Interior made of stainless steel with excellent corrosion resistance (with perforated shelves and mounting grooves) • Stainless steel piping, nickel brass flow meter, and solenoid valve • Single-opening door equipped with metal thermal seal and rubber gas-tight seal, closed with a recoil-free handle • Connection to gas inlet: The compression fitting on the partition wall is compatible with a tube of outer diameter 10mm (maximum inlet pressure = 2 bar)
Price range
Delivery Time
Model number/Brand name
Carbolite Gero
Applications/Examples of results
Gas flow control is divided into purge gas and process gas, so after purging the atmosphere, process gas can be used at low flow rates. The switching between purge gas and process gas is set to manual by default, but a programmable automatic control system can also be selected as an option. The oxygen level inside the chamber can be reduced to 50 ppm.
