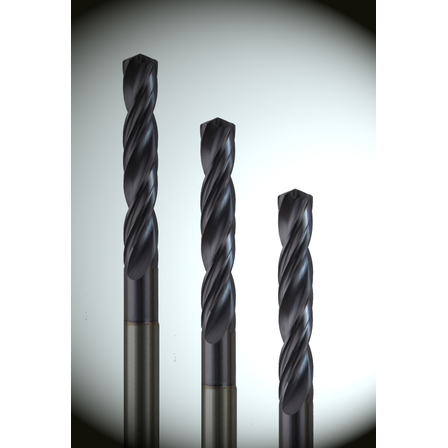

One-shot machining of H7 precision holes, process reduction, MEGA drill reamer.
One-shot machining of H7 precision holes using water-soluble cutting oil.
We achieve high-precision hole processing (roundness, cylindricity, hole surface roughness) for steel and stainless steel, which traditionally required two or more processes, in a single operation. This reduces the number of processes and shortens processing time, significantly lowering overall processing costs by eliminating the need for tool changes and tool purchases. In addition to standard external and internal lubrication series that accommodate a wide range of materials from general steel to stainless steel, we also offer external and internal lubrication series of the "MEGA Drill Reamer HARD," specifically designed for high-hardness materials (50-62 HRC) that have undergone heat treatment. We also support regrinding and recoating, ensuring a robust support system so that you can use your tools for as long as possible with peace of mind.
basic information
【MEGA Drill Reamer H7】 Designed with a total of 6 cutting edges: 2 drill edges + 4 reamer edges. 3×ΦD External lubrication (M2253/M2353) & Internal lubrication (M2263) 5×ΦD External lubrication (M2254) & Internal lubrication (M2265) 8×ΦD Internal lubrication (M2268) Available in sizes with cutting diameters from Φ2.97 to Φ30.0. Φ2.97 to Φ3.4 is for external lubrication only, while sizes from Φ3.5 to Φ30.0 include both external and internal lubrication series. Compatible with a wide range of materials including general steel, stainless steel (up to HRC50), copper alloys, and plastics. 【MEGA Drill Reamer HARD】 Designed with a total of 8 cutting edges: 2 drill edges + 6 reamer edges. 3×ΦD External lubrication (M2273) & Internal lubrication (M2283) 5×ΦD Internal lubrication (M2285) Available in sizes with cutting diameters from Φ3.97 to Φ16.5. Capable of machining high-hardness materials (50–62 HRC).
Price information
For detailed pricing and delivery times, please contact your usual tool supplier.
Delivery Time
Model number/Brand name
MEGA Drill Reamer H7 / MEGA Drill Reamer HARD
Applications/Examples of results
Since high-precision machining (H7) can be achieved in one process, it is ideal for those looking to reduce overall machining costs, including process reduction, shortening machining time, and eliminating the need for tool changes or tool purchases.
Detailed information
Related Videos
Line up（9）
| Model number | overview |
|---|---|
| MEGA Drill Reamer H7 M2253 | 3×ΦD external oil supply type, for blade diameters up to Φ13.03 with different diameter shank, Φ13.1 and above conform to the same standard as M2353. |
| MEGA Drill Reamer H7 M2353 | 3×ΦD external oil supply type minimum Φ2.97 to same diameter shank |
| MEGA Drill Reamer H7 M2263 | 5×ΦD External Oil Supply Type |
| MEGA Drill Reamer H7 M2254 | 3×ΦD Internal Lubrication Type |
| MEGA Drill Reamer H7 M2265 | 5×ΦD Internal Lubrication Type |
| MEGA Drill Reamer H7 M2268 | 8×ΦD Internal Lubrication Type |
| MEGA Drill Reamer HARD M2273 | 3×ΦD External Lubrication Type Compatible with High Hardness Materials (50–62 HRC) |
| MEGA Drill Reamer HARD M2283 | 3×ΦD Internal Lubrication Type Compatible with High Hardness Materials (50–62 HRC) |
| MEGA Drill Reamer HARD M2285 | 5×ΦD Internal lubrication type compatible with high hardness materials (50–62 HRC) |
