Excellent strength and outstanding chemical resistance stainless steel coolant hose.
Stainless steel coolant hose resistant to cutting oil and chemicals.

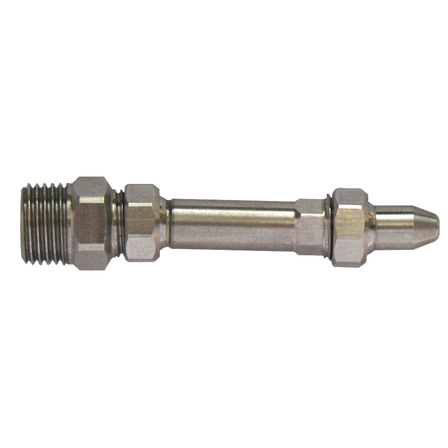

This is a coolant hose made of highly durable stainless steel (SUS303). Compared to resin materials, it has significantly higher retention strength and does not change shape even under high-pressure coolant, machine vibrations, or interference from chips, allowing for a stable supply of coolant to the tool tip at all times.
basic information
We offer a wide range of connectors, joint hoses, joint adapters, and various nozzles for each hose system of "type0(1/8)", "type1(1/4)", and "type2(1/2)". Depending on the combination, it can accommodate various situations during processing. <High Retention Force and Shape Maintenance> Thanks to the screw-type structure, the hose does not change direction or bend even when subjected to high-pressure cutting oil or intense vibrations from machinery. <Excellent Durability and Long Lifespan> We use stainless steel (SUS303), which has excellent corrosion resistance and durability, achieving an overwhelmingly long lifespan compared to resin hoses. <Flexible Adjustment> The length and shape of the hose can be freely changed on-site, allowing for easy setting of the optimal oil supply angle to suit various situations. <Rich Variety of Parts> There is a wide selection of parts such as nozzles and joints tailored to processing applications, providing excellent system expandability. Usable temperature: -30° to +100° Maximum operating pressure (liquid): up to 725 PSI (5 MPa) Maximum flow rate: up to 60
Price information
For detailed pricing and delivery times, please contact your usual tool supplier.
Delivery Time
Model number/Brand name
Hiruta Line coolant hose
Applications/Examples of results
<Cooling during Cutting and Grinding> In machining centers, CNC lathes, and grinding machines, coolant is used to cool the tools and workpieces that become hot due to friction heat, preventing tool tip damage and a decrease in machining accuracy. <Chip Removal> By using the pressure of the coolant liquid and air pressure, chips generated during machining are blown away to prevent issues. <Air Blow Applications> In addition to liquids, air is also injected for drying and cleaning the machined surface, as well as for chip removal.
Detailed information
Related Videos
Line up（3）
| Model number | overview |
|---|---|
| 1/8 Horse System (type 0) | Applicable to M8-0.75 |
| 1/4 hose system (type 1) | Adapted for M14-1.0 |
| 1/2 Horse System (Type 2) | Adapted to M24-1.25 |
