Retrofit possible! Aerial work platforms with anti-crushing systems.
![FireShot Capture 038 - 挟まれガード（高所作業車用作業員挟まれ事故回避警報機） - Ronk(ロンク)株式会社 - [ronk-jp.com].png](https://image.mono.ipros.com/public/product/image/2098784/IPROS3550869917881936925.png?w=280&h=280)
Pinch Guard - Laser Contact Alarm Device

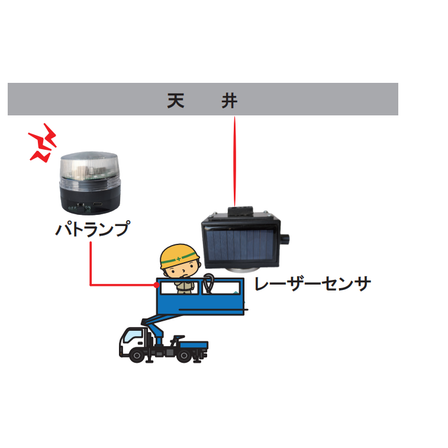

Prevent contact and pinching accidents between tunnel inspection vehicles, aerial work platforms, vertical lifts, and superstructures!! Laser sensors mounted on the bucket of aerial work platforms measure the distance to the ceiling and wirelessly send data to a warning light. ● Uses fine laser beams, which have a longer detection range and fewer false activations compared to ultrasonic methods. ● When the distance falls below the set threshold, the warning light provides an alert with sound and light. ● The warning light and sensor are magnetically mounted, allowing for easy installation in locations with lift switches, such as inside the cabin or basket. **Laser Detection Range** 0.1m to a maximum of 10m Configurable caution/danger distance settings Based on information from the sensor, it provides warnings with different sounds and lights according to the set distance. Safe distance: Warning light is off Caution distance: Warning light flashes blue + intermittent warning sound Danger distance: Warning light flashes red + intense warning sound
basic information
Specifications 【Laser Sensor】 Built-in Battery: Lithium Polymer (2600mAh) Detection Range: 0.1m to a maximum of 10m (modifiable via settings tool) Power Consumption: 75mA Operating Time: 4 days (8 hours of operation per day) Dimensions: 90 (W) × 60 (H) × 55 (D) mm Weight: Approximately 184g Notes: Connector Type: USB, Mounting Method: Magnet 【Patrol Lamp】 Built-in Battery: Lithium Polymer (2000mAh) Operating Time: 13 days (8 hours of operation per day) Dimensions: 72 (W) × 65 (H) mm Weight: Approximately 182g Notes: Connector Type: USB, Mounting Method: Magnet
Price information
Delivery Time
Applications/Examples of results
Tunnel inspection vehicle, aerial work platform, vertical lift, etc.
Detailed information
catalog（1）
Download All Catalogs
Recommended products
Distributors
Ronk Co., Ltd. is a solution company that supports on-site safety, centered around AI, UWB, advanced laser, and digital radio technologies. Since its establishment, we have established a strong collaborative system between "planning and design by our domestic headquarters" and "manufacturing and quality control by our group company in Shanghai." With this unique know-how, we provide products that implement advanced technology with overwhelming speed and satisfactory cost performance. We contribute to our customers' "creation of a safe and secure environment" with total support that includes not only product planning and manufacturing but also flexible customization and rental services tailored to on-site needs, as well as comprehensive aftercare. If you have any challenges regarding safety measures on-site, please feel free to consult with us first.
