Pinhole Detector "TRS-250II/70II"
Introducing pinhole detectors weighing 4.2kg and 3.2kg! They come with an ABS-made telescopic probe.

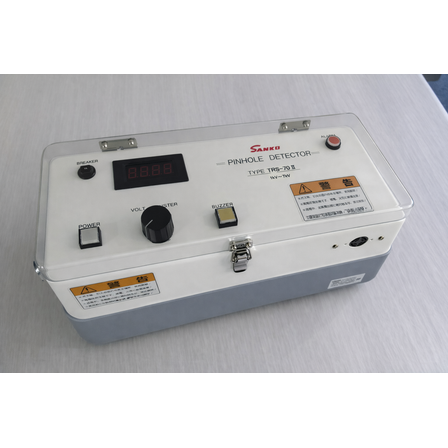

Introducing the pinhole detector 'TRS-250II/70II', which operates on a low-frequency high-voltage pulse discharge method. The "TRS-250II" has a detection voltage range of 5 to 25 kV (peak value) and a weight of 4.2 kg. The "TRS-70II" has a detection voltage range of 1 to 7 kV (peak value) and a weight of 3.2 kg. Standard accessories include a probe storage case, a 5m ground wire, a 5m safety switch wire, and a 2m power cord. 【Specifications (excerpt)】 <TRS-250II> ■ Method: Low-frequency high-voltage pulse discharge ■ Detection voltage: 5 to 25 kV (peak value) ■ Power supply: AC100V, 50/60Hz, 36VA ■ Alarm method: Lamp, buzzer ■ Target coating thickness: 1mm or more ■ Operating temperature range: 0 to 40°C (must not condense) ■ Dimensions: 370(W) × 190(H) × 150(D) mm ■ Weight: 4.2 kg *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications (Excerpt)】 <TRS-70II> ■ Method: Low-frequency high-voltage pulse discharge type ■ Detection voltage: 1 to 7 kV (peak value) ■ Power supply: AC100V, 50/60Hz, 36VA ■ Alarm method: Lamp, buzzer ■ Target coating thickness: 1mm or less ■ Operating temperature range: 0 to 40℃ (must not condense) ■ Dimensions: 370(W) × 190(H) × 150(D) mm ■ Main unit weight: 3.2 kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
