Case Study of Groove Processing for Round Parts
Supports processing of round parts with grooves.

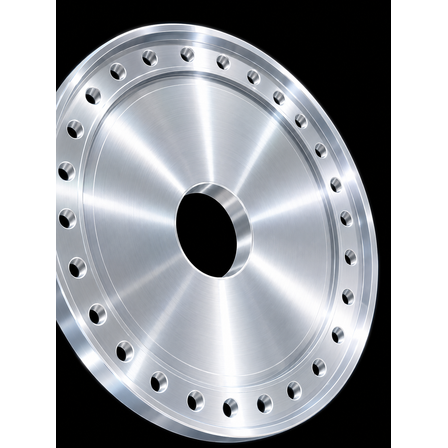

This is an example of machining a metal part with a disc shape, featuring an internal diameter with a dovetail groove. The dovetail groove, which has a narrow upper width and a wider lower width, requires careful selection of tools, machining posture, and dimension management. The dovetail groove is used to accommodate rubber gaskets and enhance the adhesion with other components. Additionally, there are numerous evenly spaced holes arranged around the outer circumference, which can be referenced for the production of parts that combine round machining, hole machining, and groove machining. It is anticipated that this can be utilized in device parts, jig components, and positioning mechanisms.
basic information
Category: Metal processed parts / Cutting processed parts / Round processed parts Material: Aluminum Processing details: Round processing, inner diameter processing, dovetail groove processing, multiple hole processing on the circumference Remarks: The dovetail groove has a shape where the lower width is wider than the upper width, and managing the cross-sectional shape, depth, and angle is important. Care is also needed to ensure that burrs do not remain, as the groove is intended for applications such as inserting rubber gaskets.
Price information
Price: Quoted on a case-by-case basis (varies based on shape, thickness, surface roughness/tolerance requirements, and quantity). Please provide the drawings and required values.
Delivery Time
Applications/Examples of results
Flange used for the rotating and fixed parts inside the device.
