CNC Image Measuring Machine Instant Measurement Device
A device that measures the outer diameter dimensions of multiple parts instantly 【Our company's overseas procurement product】

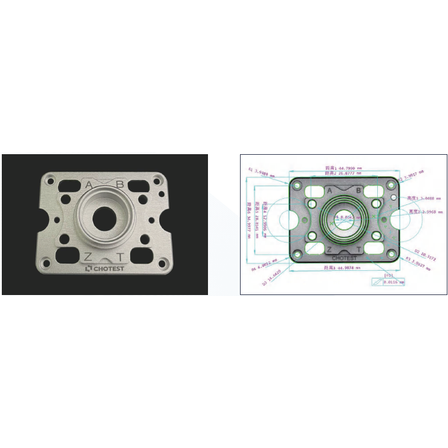

- Simultaneous measurement of 1024 dimensions - Simultaneous measurement of over 100 parts - Measurement completed in 3 seconds - Maximum repeat measurement accuracy of 0.5μ *depending on specifications Convenient features: Easy integration of CAD data, automatic matching of drawing dimensions and measurement results Simply place jig-less parts on the measuring table Instant dimension measurement with just a button press Rich tools available with VisionX measurement software Output of statistical analysis reports of measurement results (σ, 3σ, 6σ, Ca, Cp, CpK) Improvement of quality control through SPC analysis reports
basic information
CMOS Camera: 2000M pixels Monitor: 10.4-inch LCD (XGA: 1024×768) *Option: 24-inch LCD (XGA 1920×1080) Measurement Field of View Wide Field: (mm) 320×200 High Precision: (mm) 230×130 Repeatability Wide Field: Fixed Measurement Stage: ±1μm Moving Measurement Stage: ±2μm High Precision: Fixed Measurement Stage: ±0.5μm Moving Measurement Stage: ±0.5μm Measurement Accuracy Without Image Synthesis Wide Field: ±3μm High Precision: ±1.5μm With Image Synthesis Wide Field: ±(5+0.02×L)μm High Precision: ±(3+0.02×L)μm Movement Range (XYZ, mm): 210×110×75 Load Range: >7.5Kg Display Resolution: 0.1μm * 1. Height Measurement (OPTION) 2. Horizontal Rotary Table (OPTION) For details, please contact us.
Price information
We can propose cost-competitive products tailored to your requests regarding target products, inspection items, required accuracy, required inspection speed, specified equipment, etc., other than this model, so please feel free to contact us first.
Price range
P5
Delivery Time
OTHER
Applications/Examples of results
Measurement equipment suitable for processes such as inline inspection, offline full inspection, sampling inspection, acceptance inspection, and dimensional verification of trial products in fields such as machinery, electrical and electronic, molds, resin molding, hardware, plastics, low-voltage electricity, magnetic materials, precision pressing, connectors, couplings, terminals, mobile devices, home appliances, circuit boards, medical devices, watches, and cutting tools.
