【SHOULDER】Compatible with 2 bands! High-precision GNSS SAW filter
AECQ-200 compliant dual SAW filter centered at 1210 MHz and 1577.5 MHz.
Realized 2 frequency support (1210MHz / 1577.5MHz) in a single chip measuring 2.5mm x 2.0mm (1 IN 1 OUT). Compliant with AEC-Q200! It meets automotive quality standards and enables high-precision signal positioning. Additionally, it achieves high attenuation over a wide bandwidth up to 6000MHz, making it a product that is less susceptible to interference from other frequencies.
basic information
【Features】 ◆ Center frequency: 1210 MHz / 1577.5 MHz ◆ Insertion loss: Maximum 2.5dB (wideband compatible) ◆ VSWR: Maximum 2.0 ◆ High attenuation performance: Achieves attenuation performance of over 34dB across a wide range of 10 to 6000MHz ◆ Operating temperature range: -40℃ to +105℃
Price information
Please contact us.
Delivery Time
Model number/Brand name
HDTFL1L5RSSCL-B35M-SWTX AECQ-200 compliant
Applications/Examples of results

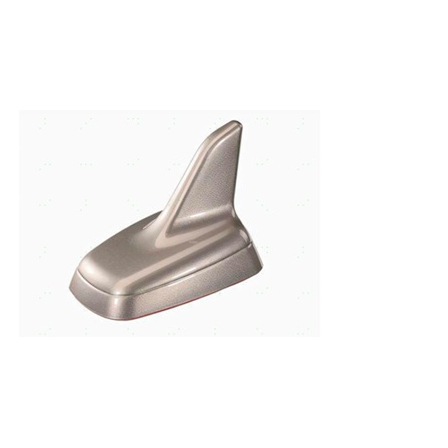

GPS module, GNSS module, vehicle-mounted antenna, smartwatch, smartphone, etc.
Line up（1）
| Model number | overview |
|---|---|
| HDTF1588CCL Ultra Low Loss AECQ-200 Compliant SAW for GNSS |
