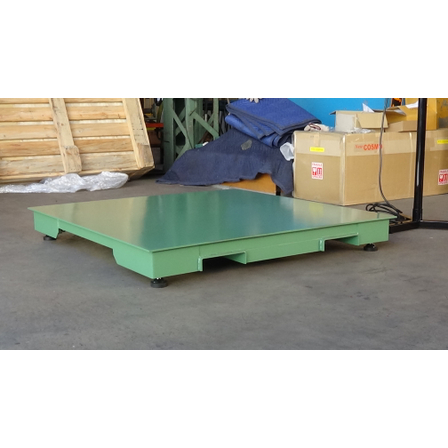

Fork guide-equipped platform scale, road foot type SDL-FG
It is a scale that can be moved with a forklift. Compatible with T11 type pallets, certified products are also available.
This is a digital platform scale with fork guides that can be moved by a forklift. The SDL-FG, which is a load foot type, is equipped with a platform size of 1,200 × 1,200 mm compatible with T11 type pallets. There are three capacity options: 1,000 kg, 1,500 kg, and 2,000 kg. You can choose according to the weight of the items being weighed, and it is also compatible with certified products for transactions and proof. 【Features】 ■ Equipped with fork guides for movement by forklift ■ Compatible with T11 type pallets ■ Choose from three models according to capacity ■ Certified products have "-K" added to the model number ■ Select from standard, printer-equipped, or dust and waterproof displays according to your needs The standard display is Si170B, and the standard display for certified products is AD-4406A. Options for printer-equipped display AD-4405A and dust and waterproof display AD-4407A are also available. *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 ■SDL-10-1200FG: Capacity 1,000 kg / Graduation 0.5 kg ■SDL-15-1200FG: Capacity 1,500 kg / Graduation 0.5 kg ■SDL-20-1200FG: Capacity 2,000 kg / Graduation 1 kg ■Loading dimensions: 1,200×1,200 mm ■Height: 145 mm ■Fork guide: External dimensions 768 mm / Internal dimensions 392 mm ■Material: Steel ■Standard display: Si170B ■Certified standard display: AD-4406A ■Display with printer: AD-4405A (optional) ■Dustproof and waterproof display: AD-4407A (optional) *Certified models have "-K" at the end of the model number.
Price information
It varies depending on the weighing capacity, presence of certification, display device, and options. For more details, please contact us.
Delivery Time
Model number/Brand name
SDL-10-1200FG, SDL-15-1200FG, SDL-20-1200FG
Applications/Examples of results
【Applications】 ■ Weight verification for cargo using T11 type pallets ■ When wanting to move the location of platform scales using a forklift in factories or warehouses ■ When wanting to choose a capacity of 1,000 kg, 1,500 kg, or 2,000 kg according to the items being weighed ■ When weighing is required for transactions or certification (select certified products) ■ When wanting to print the weighing results (select display with printer) *The above is an introduction to applications. It does not indicate delivery records to individual companies. Please contact us for specifications and installation conditions.
