Automatic Bag Opening Device | Robot Unpacking of Raw Material Bags - Raw Material Supply System
Achieving both labor reduction and safety! Fully automating the depalletizing and feeding of bagged materials.

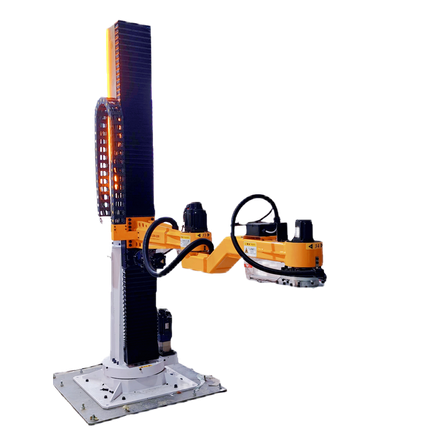

The automatic opening device for raw material bags (such as pellets and powders) developed by BYR Corporation is an intelligent system that fully automates the process of grabbing raw material bags stacked on pallets, opening them, and feeding the raw materials into a hopper. **Strengths of the System** - **Space-saving Design:** Utilizes a unique column-type robot that can be compactly installed in limited factory spaces. - **Excellent Cost Performance:** The simpler structure compared to multi-joint robots significantly reduces both installation and maintenance costs. - **Adaptability to Irregular Loads:** Can be equipped with a high-performance AI 3D vision system (optional) that accurately recognizes and grips bags that have collapsed or are unevenly stacked on the pallet. - **Thorough Safety Measures:** Includes safety fences and light curtains as standard components, complying with Japan's strict safety standards. This solution is ideal for freeing workers from heavy labor, addressing labor shortages, and investing in digital transformation and automation within factories.
basic information
We will propose the optimal system according to production volume and work weight. 【Basic Specifications Example: BYR-150 Model】 ■ Robot payload: 150kg (also compatible with 50kg/260kg/500kg models) ■ Maximum arm length: 2200mm ■ Lifting stroke: 2164mm ■ Number of axes: 4 axes ■ Position repeatability accuracy: ±0.5mm ■ Compatible work: Bagged materials (plastic pellets, various powders, chemical products, food ingredients, etc.) ■ Compatible work weight: Up to 60kg ■ Processing capacity: Depalletizing 120 bags/hour ■ Gripper type: Needle punch type or customized ■ Communication protocol: Supports EtherCAT / Modbus / TCP ■ Power and air pressure: AC 380V 50Hz / 0.5-0.7MPa ■ International certification: European CE certification, ISO9001 quality management system certification obtained.
Price range
P6
Delivery Time
P4
Model number/Brand name
BeiYuan Robot | BYR Series
Applications/Examples of results
【Main Uses】 ■ Automatic unloading of resin pellet bags and automatic feeding into molding machine hoppers at plastic molding factories. ■ Automation of depalletizing powder raw material bags from pallets and bag opening/supply lines at chemical, feed, and fertilizer factories. ■ Prevention of foreign material contamination and improvement of sanitary conditions through automatic feeding of various raw material bags (seasonings, powdered materials, etc.) at food and pharmaceutical factories. ■ Automatic sorting and line feeding of incoming bagged materials at logistics warehouses and distribution centers. 【Implementation Achievements】 BYR, the developer, has over 10 years of experience in the field of industrial automation and has implemented thousands of projects in more than 30 countries worldwide. This depalletizing system and automatic supply solution have also been adopted in overseas factories of major Japanese chemical and pharmaceutical manufacturers, significantly contributing to labor reduction and improved production efficiency. With reliable technical expertise and globally standardized quality, you can use it with confidence.
Line up（4）
| Model number | overview |
|---|---|
| BYR-50 model | Effective load capacity | Grip: 50kg |
| BYR-150 model | Effective load capacity | Grip: 150kg |
| BYR-260 model | Effective load capacity | Grip: 260kg |
| BYR-500 model | Effective load capacity | Grip: 500kg |
