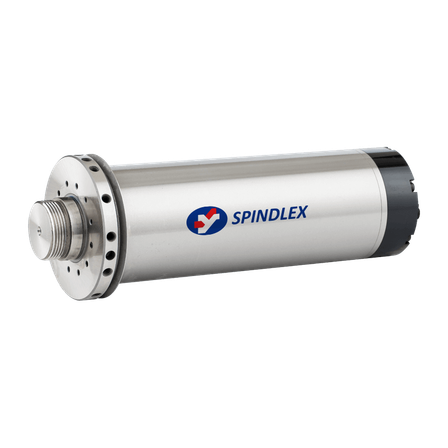

High-speed dressing spindle "SYD-72-16K-0.6kW"
Achieve economical and easy maintenance with one-time grease lubrication!
The "SYD-72-16K-0.6kW" is a high-speed dressing spindle designed with an air curtain to prevent the intrusion of chips and foreign objects, thereby extending its lifespan. The spindle's runout accuracy is within 2μm, accommodating high-precision machining. Temperature control is achieved through water cooling, which suppresses thermal displacement and stabilizes temperature and accuracy. With a low vibration design that achieves a dynamic balance of G0.4 or less, it reduces vibration and machining errors. Please feel free to contact us when you need assistance. 【Features】 ■ Air curtain design: Prevents the intrusion of chips and foreign objects, extending lifespan ■ Ultra-high precision: Spindle runout accuracy within 2μm, suitable for high-precision machining ■ Temperature control: Water cooling suppresses thermal displacement, stabilizing temperature and accuracy ■ Grease lubrication: One-time grease lubrication for economical and easy maintenance ■ Low vibration design: Achieves dynamic balance of G0.4 or less, reducing vibration and machining errors *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications (Excerpt)】 ■Housing Diameter (mm): φ72 ■Rotation Speed (RPM): 16,000 ■Output S1/S6 (kW): 0.5/0.6 ■Reference Rotation Speed (RPM): 16,000 ■Rated Voltage (V): 220 ■Motor Type: Asynchronous *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Recommended products
Distributors
Our company was established in 1977, starting with the development of dedicated machines. As we progressed with in-house development, we deeply recognized the importance of spindles. In 1998, we introduced repair and manufacturing technology for high-frequency spindles from Europe, and in addition to repairing these high-frequency spindles, we have also been engaged in the research and development of built-in high-speed spindles. With the management philosophy of "Quality First," we aim to enhance our customers' competitiveness by continuously developing high-quality built-in high-speed spindles. Additionally, in addition to mass production, we provide specialized services for machine tool manufacturers with specific needs for built-in high-speed spindles, including design, development, assembly, and testing.
