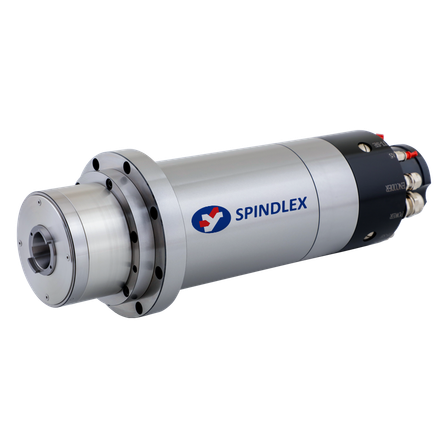

Sculpture machine spindle 'SY-120-24K-5.4kW'
Low vibration design! Achieves dynamic balance of G0.4 or below, reducing vibration and machining errors.
The "SY-120-24K-5.4kW" is a sculpting machine spindle equipped with ceramic bearings that provide wear resistance and low thermal expansion, maintaining spindle accuracy over a long period. The spindle runout accuracy is within 2μm, suitable for high-precision machining, and the air curtain design prevents the intrusion of chips and foreign objects, extending its lifespan. With one-time grease lubrication, it allows for economical and easy maintenance. Please feel free to contact us when you need assistance. 【Features】 ■ Ceramic Bearings: Equipped with wear resistance and low thermal expansion, maintaining spindle accuracy over a long period ■ Grease Lubrication: One-time grease lubrication for economical and easy maintenance ■ Air Curtain Design: Prevents the intrusion of chips and foreign objects, extending lifespan ■ Ultra High Precision: Spindle runout accuracy within 2μm, suitable for high-precision machining ■ Low Vibration Design: Achieves dynamic balance of G0.4 or less, reducing vibration and machining errors *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications (Excerpt)】 ■ Housing diameter (mm): φ120h6 ■ Rotational speed (RPM): 24,000 ■ Output S1/S6 (kW): 4.5/5.4 ■ Rated rotational speed (RPM): 10,000 ■ Rated voltage (V): 220 ■ Motor type: Asynchronous *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Recommended products
Distributors
Our company was established in 1977, starting with the development of dedicated machines. As we progressed with in-house development, we deeply recognized the importance of spindles. In 1998, we introduced repair and manufacturing technology for high-frequency spindles from Europe, and in addition to repairing these high-frequency spindles, we have also been engaged in the research and development of built-in high-speed spindles. With the management philosophy of "Quality First," we aim to enhance our customers' competitiveness by continuously developing high-quality built-in high-speed spindles. Additionally, in addition to mass production, we provide specialized services for machine tool manufacturers with specific needs for built-in high-speed spindles, including design, development, assembly, and testing.
